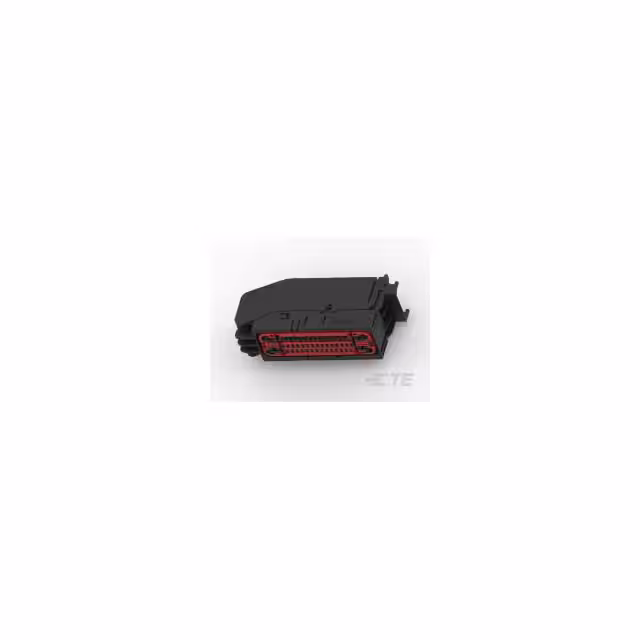

9-1355512-3

Manufacturer :

TE Connectivity

Product Category :

Unclassified

Package :

Box

Mating Tab Width :

635 µm

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Polarized :

No

Length :

125.6 mm

Housing Material :

Polyamide (PA)

Pitch :

3.9878 mm

Number of Rows :

3

Operating Supply Voltage :

14 V

Circuit Application :

Power

Body Depth :

2.264 inch

Series :

*

Product :

Housings

Mating Information :

No

Serviceable :

yes

Total Number of Contacts :

47

Number of Positions :

47

RoHS :

Non-Compliant

Minimum Operating Temperature :

- 40 C

Mounting Type :

CABLE

Shell Material :

GLASS FILLED PA

Contact Gender :

FEMALE

Body Breadth :

1.496 inch

Empty Shell :

No

Contact Style :

SQ PIN-SKT

Hybrid Connector :

yes

Mounting Angle :

RIGHT ANGLE

Option :

GENERAL PURPOSE

Filter Feature :

No

Product Status :

Active

Maximum Operating Temperature :

+ 125 C

Color :

Black

Subcategory :

Automotive Connectors

HTS :

8538.90.60.00

Max Operating Temperature :

125 °C

Application :

Wire to Board/Device

Automotive :

Unknown

Termination Type :

Crimp

Width :

38 mm

Mixed Contacts :

No

Gender :

Socket (Female)

Min Operating Temperature :

-40 °C

Connector Type :

COMBINATION LINE CONNECTOR

PPAP :

Unknown

ECCN (US) :

EAR99

Height :

57.5 mm

Product Type :

Automotive Connectors

Manufacturer :

TE Connectivity

EU RoHS :

Compliant

Voltage Rating :

14 VAC

Reach Compliance Code :

Compliant

Brand Name :

TE Connectivity

Additional Feature :

POLARISED

Lifecycle Status :

Production (Last Updated: 3 days ago)
