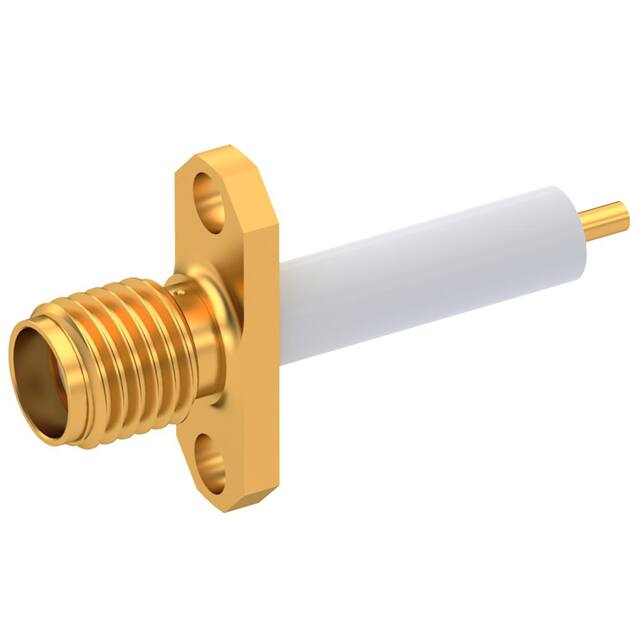

9008-1113-000
Or copy the link below:
- Mfr.Part #
- 9008-1113-000
- Manufacturer
- Radiall USA, Inc.
- Package / Case
- Datasheet
- Download
- Description
- SMA / STRAIGHT JACK RECEPTACLE F
- Stock
- 40,124
- In Stock ：
- 40,124
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Radiall USA, Inc.
- Product Category :
- Coaxial Connector (RF) Assemblies
- Body/Shell Style :
- Receptacle
- Product Category :
- RF Connectors / Coaxial Connectors
- Body Orientation :
- Straight
- Coupling Type :
- Threaded
- HTS Code :
- 8536.69.40.10
- Series :
- SMA
- Contact Termination :
- Solder
- Body Style :
- Flange
- Product Status :
- Active
- Housing Color :
- Gold
- DIN Conformance :
- No
- Cable Type :
- -
- Polarity :
- Standard
- Manufacturer :
- Radiall
- JESD-609 Code :
- e4
- Center Contact Plating :
- Gold
- Center Contact Material :
- BERYLLIUM COPPER
- ECCN Code :
- EAR99
- Panel Mount :
- yes
- Operating Frequency-Max :
- 18 GHz
- Features :
- Extended Insulation
- Contact Gender :
- FEMALE
- Mounting Style :
- Flange Mount
- Impedance :
- 50 OHM
- Reliability :
- COMMERCIAL
- Shell Finish :
- Gold Over Nickel
- Number of Ports :
- 1
- Additional Feature :
- CAPTIVE CONTACT
- Factory Lead Time :
- 7 Weeks, 6 Days
- Connector Style :
- SMA
- Mounting Feature :
- Flange
- Contact Material :
- BERYLLIUM COPPER
- Mounting Type :
- Panel Mount, Through Hole
- Contact Plating :
- Gold
- Body Finish :
- Gold
- Reach Compliance Code :
- Compliant
- Durability :
- 500 Cycles
- Connector Type :
- Jack, Female Socket
- Mounting :
- Panel Mount
- Insertion Loss :
- -
- Type :
- SMA
- Operating Temperature :
- -65 to 165 °C
- Insulator Color :
- White
- Brand :
- Radiall
- IP Rating :
- -
- Frequency - Max :
- 18 GHz
- Product Type :
- RF Connectors / Coaxial Connectors
- Termination Style :
- Solder
- Insertion Force-Max :
- 8.896 N
- Contact Finish Termination :
- Gold (Au) - with Nickel (Ni) barrier
- Package :
- Bulk
- Max Frequency :
- 18 GHz
- Cable Group :
- -
- RoHS :
- Details
- Orientation :
- Straight
- Product :
- Panel Receptacles
- Characteristic Impedance :
- 50 Ω
- Mounting Option 1 :
- HOLE .099-.111
- Terminate To :
- Coaxial Cable
- Shell Material :
- Steel
- Gender :
- Receptacle
- Base Product Number :
- 9008-1113
- Termination Type :
- Solder
- Terminal Length :
- 0.115 inch
- Option :
- GENERAL PURPOSE
- Mating Cycles :
- 500
- Ingress Protection :
- -
- MIL Conformance :
- No
- Product Length :
- 27.43 mm
- IEC Conformance :
- No
- Body Material :
- Brass
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Fastening Type :
- Threaded
- Contact Style :
- COAX
- Includes :
- -
- Shield Termination :
- Solder
- RF Series :
- SMA
- Filter Feature :
- No
- Total Number of Contacts :
- 1
- Subcategory :
- RF Interconnects
- Datasheets
- 9008-1113-000
Jack, Female Socket Threaded 50 Ohm SMA Solder 1 Port Polytetrafluoroethylene (PTFE) -65 to 165 °C
9008-1113-000 Overview
It comes in Jack, Female Socket packaging.There is a mounting type of Panel Mount, Through Hole for this device.This product is part of the SMA Series.Moreover, there are a number of other features, including CAPTIVE CONTACT, to name just a few.A variety of tasks can be managed through its 1 ports.In this case, the device operates at -65 to 165 °C Operating Temperature.It is possible for the device to reach a maximum frequency of 18 GHz.
9008-1113-000 Features
SMA series
9008-1113-000 Applications
There are a lot of Radiall
9008-1113-000 Coaxial Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
