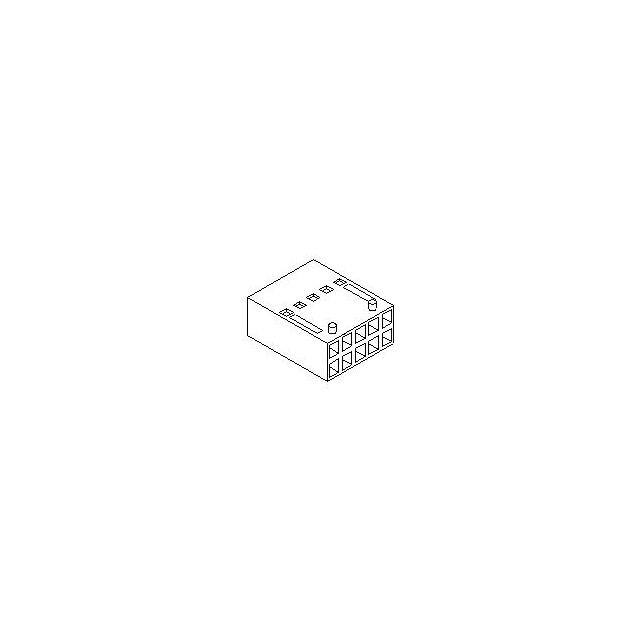

90143-0022

Manufacturer :

Molex

Product Category :

Unclassified

Base/Housing Material :

PPO (Polyphenylene Oxide)

Insulation Resistance :

1000 MOhms

Product Height (mm) :

15.24(mm)

DIN Conformance :

No

Contact Material :

NOT SPECIFIED

Housing Material :

Polyphenylene Oxide (PPO)

Dielectric Withstanding Voltage :

1000VDC V

Termination Style :

Crimp

Operating Temp Range :

-55C to 105C

Series :

90143

Subcategory :

Headers and Wire Housings

Mounting Option 1 :

LOCKING

Number of Rows :

2

Product Category :

Headers and Wire Housings

Filter Feature :

No

Housing Color :

Black

Product Status :

Active

Mounting :

Cable Mount

Number of Contact Rows :

2

Product Depth (mm) :

5.08(mm)

Product Type :

Headers and Wire Housings

Contact Style :

SQ PIN-SKT

Mating Contact Pitch :

0.1 inch

UL Flammability Code :

94V-1

IEC Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Voltage Rating :

350, 350 Vdc/Vac

Brand :

Molex

Product :

Wire Housings

Product Length (mm) :

27.94(mm)

Mixed Contacts :

No

Mounting Style :

Cable Mount / Free Hanging

Rated Current (Signal) :

3 A

Contact Plating :

Gold

Insulator Color :

Black

Manufacturer :

Molex

Pbfree Code :

yes

Body Orientation :

Straight

Mounting Angle :

Straight

Pitch (mm) :

2.54(mm)

Current Rating (Max) :

3/Contact(A)

Number of Contacts :

22

Packaging :

Bag

Reach Compliance Code :

Compliant

Additional Feature :

C-GRID III, POLARIZED

Reliability :

COMMERCIAL

Body Depth :

0.6 inch

Gender :

Receptacle

Package :

Box

Contact Pattern :

RECTANGULAR

Contact Gender :

Socket (Female)

Body Breadth :

0.2 inch

Flammability Rating :

UL 94 V-1

Minimum Operating Temperature :

- 55 C

Termination Type :

Crimp

Total Number of Contacts :

22

Option :

GENERAL PURPOSE

Terminal Pitch :

2.54 mm

Factory Lead Time :

13 Weeks

Connector Type :

BOARD CONNECTOR

Mounting Type :

CABLE

MIL Conformance :

No

Maximum Operating Temperature :

+ 105 C

Contact Resistance :

20 mΩ

Color :

Black

Number of Positions :

22 Position

Product Length :

27.97 mm

Tradename :

C-Grid

Pitch :

2.54 mm

RoHS :

Details

Application :

Signal

Panel Mount :

No

Type :

Wire to Board

Current Rating :

3 A

Operating Temperature :

-55 to 105 °C
