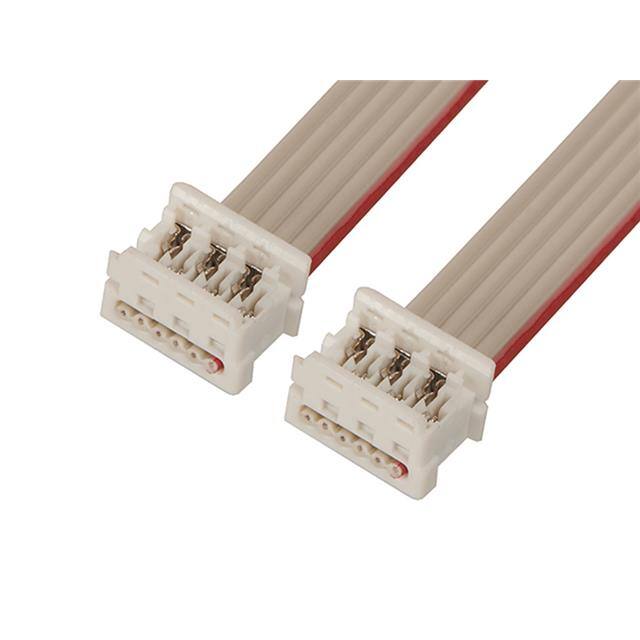

92315-0616

Manufacturer :

Molex

Product Category :

Unclassified

Pitch :

1.27mm

Tradename :

Picoflex?

Product Weight :

0.96g

Connector Type A :

PICOFLEX

Length :

0.525 (160.00mm, 6.30)

Subcategory :

Cable Assemblies

HTS :

8544.42.90.90

Cable Pitch (mm) :

1.27

Cable Type :

Flat Ribbon

Manufacturer :

Molex

ECCN (US) :

EAR99

Size (AWG) :

28

Connector Type B :

PICOFLEX

Product Depth (mm) :

10.13

Maximum Operating Temperature (°C) :

105

Automotive :

No

Series :

Picoflex 92315

Product Type :

Ribbon Cables / IDC Cables

Package :

Box

Operating Temp Range :

-40C to 105C

Termination Method :

IDT-IDT

Jacket Color :

Natural

Brand :

Molex

Cable Length (m) :

0.16

Product :

I/O Cable Assemblies

RoHS :

Details

Connector Type :

6POS RA Picoflex to 6POS RA Picoflex

Pitch - Cable :

0.025 (0.64mm)

Contact Finish :

Tin

Gender :

F-F

Current Rating :

1.2 A

Contact Material :

Phosphor Bronze

Base Product Number :

92315

Voltage Rating Max :

250V

Conductor Material :

Tinned Copper

Voltage Rating :

250 V

Number of Positions :

6

PPAP :

No

Maximum Current Rating (A) :

1.2/Contact

Maximum Voltage Rating :

250V

Cable Termination :

IDC

Product Status :

Active

Standards Met :

RoHS Compliant

Connector Pitch :

1.27mm

Shielding :

Unshielded

Insulation Color :

Gray

Cable Length :

0.16 m

Jacket Material :

Polyvinyl Chloride (PVC)

Number of Contacts :

6 to 6

Type :

Flat Flex Cable

EU RoHS :

Compliant

Minimum Operating Temperature (°C) :

-40

Color :

Gray, Ribbon

Wire Gauge :

28(AWG)

Pitch - Connector :

0.050 (1.27mm)

Current Rating (Max) :

1.2/Contact(A)

Contact Plating :

Tin

Number of Rows :

2

Wire Size :

28

Usage :

-

Product Category :

Ribbon Cables / IDC Cables

Packaging :

Bag

Contact Finish Thickness :

80.0µin (2.03µm)

Features :

-
