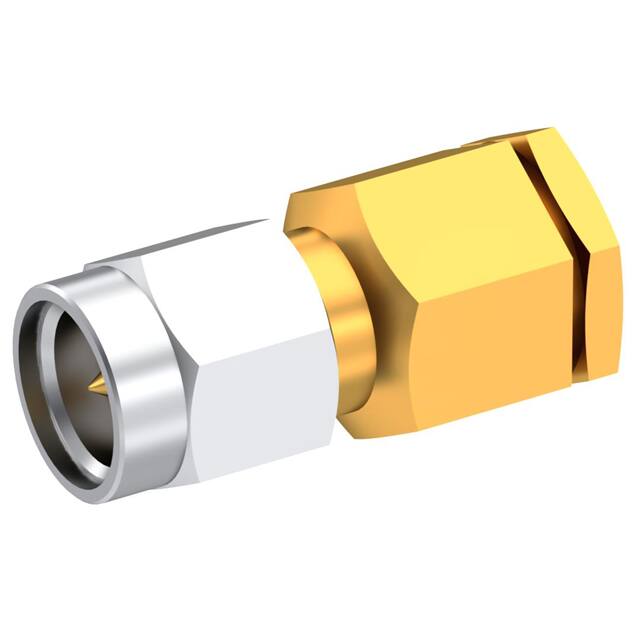

9501-1593-010
Or copy the link below:
- Mfr.Part #
- 9501-1593-010
- Manufacturer
- Radiall USA, Inc.
- Package / Case
- Datasheet
- Download
- Description
- SMA / STRAIGHT PLUG MALE SOLDER
- Stock
- 18,151
- In Stock ：
- 18,151
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Radiall USA, Inc.
- Product Category :
- Coaxial Connector (RF) Assemblies
- Ingress Protection :
- -
- Gender :
- Plug (Pin)
- Packaging :
- Bulk
- Number of Ports :
- 1
- Manufacturer :
- Radiall
- Product Status :
- Active
- IP Rating :
- -
- Characteristic Impedance :
- 50 Ω
- Mounting Type :
- Free Hanging (In-Line)
- JESD-609 Code :
- e4
- Mounting Feature :
- -
- Brand :
- Radiall
- Connector Style :
- SMA
- MIL Conformance :
- No
- DIN Conformance :
- No
- Option :
- GENERAL PURPOSE
- Termination Style :
- Clamp
- Impedance :
- 50 Ohms
- Contact Plating :
- Gold
- Orientation :
- Straight
- Package :
- Bulk
- Series :
- SMA
- Product Category :
- RF Connectors / Coaxial Connectors
- Coupling Type :
- Threaded
- Body Finish :
- Gold
- RoHS :
- Details
- Center Contact Material :
- BERYLLIUM COPPER
- Includes :
- -
- IEC Conformance :
- No
- Connector Type :
- Plug, Male Pin
- Product :
- Connectors
- Contact Termination :
- Solder
- Additional Feature :
- CAPTIVE CONTACT
- Reach Compliance Code :
- Unknown
- Cable Type :
- RG-405
- Operating Frequency-Max :
- 18 GHz
- Filter Feature :
- No
- Panel Mount :
- No
- Cable Group :
- RG-405 (.086 Semi Rigid)
- ECCN Code :
- EAR99
- Termination Type :
- CLAMP SOLDER
- Base Product Number :
- 9501-1593
- Mounting Style :
- Cable Mount / Free Hanging
- Product Type :
- RF Connectors / Coaxial Connectors
- Contact Finish Termination :
- Gold
- HTS Code :
- 8536.69.40.10
- Operating Temperature :
- -65°C ~ 165°C
- Body Style :
- Screw On
- Shield Termination :
- Clamp
- Features :
- -
- Center Contact Plating :
- Gold
- Insertion Loss :
- -
- Contact Gender :
- Male
- Factory Lead Time :
- 7 Weeks, 6 Days
- Fastening Type :
- Threaded
- Body/Shell Style :
- PLUG
- Body Material :
- Brass
- Polarity :
- Standard
- Housing Color :
- Gold
- RF Series :
- SMA
- Subcategory :
- RF Interconnects
- Frequency - Max :
- 18 GHz
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Mating Cycles :
- 500
- Datasheets
- 9501-1593-010
