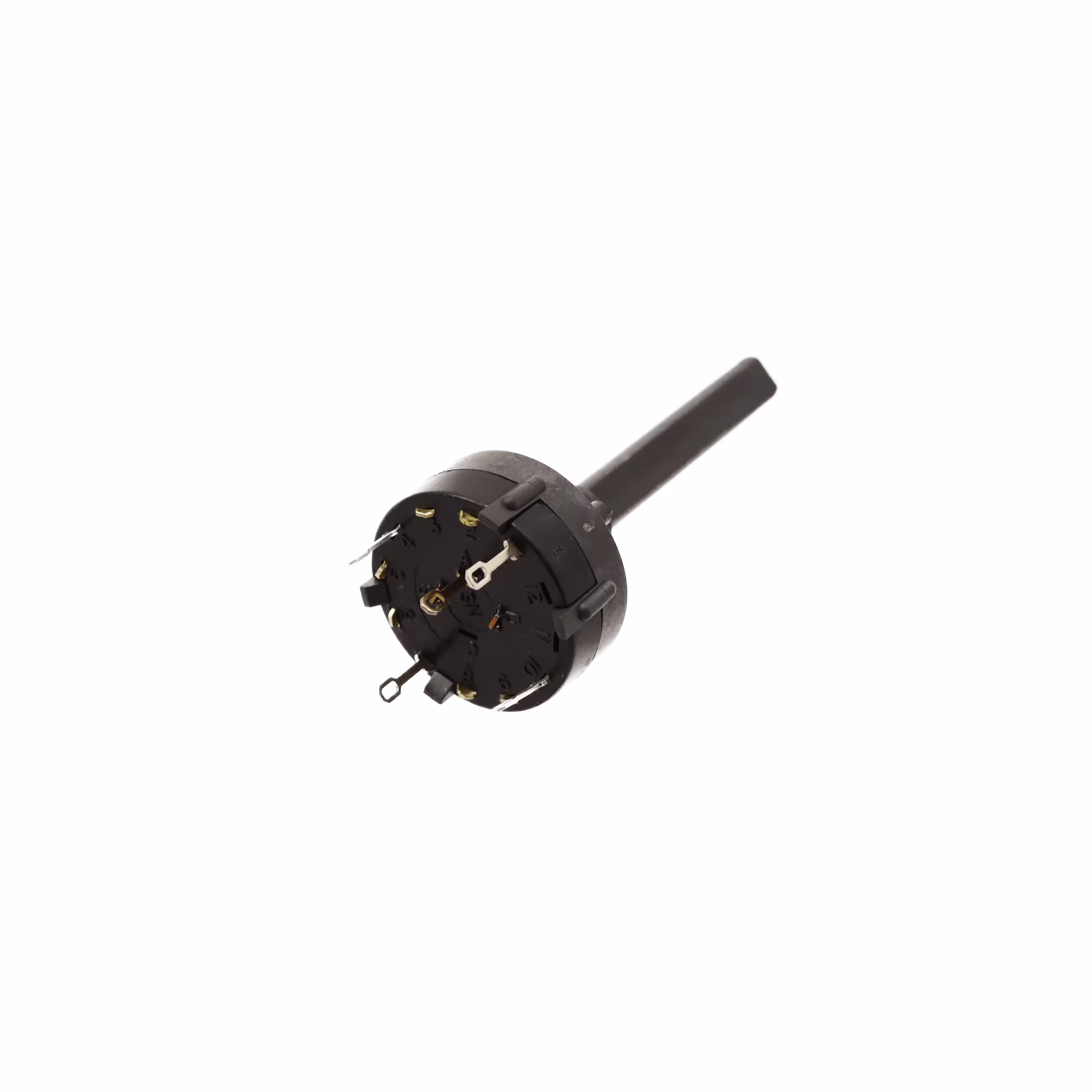

A11503RNZG

Manufacturer :

C&K

Product Category :

Number of Positions :

3

Depth :

26.19mm

RoHS Status :

ROHS3 Compliant

Contact Timing :

Non-Shorting (BBM)

Angle of Throw :

45°

Contact Plating :

Gold, Silver

Orientation :

Straight

Current Rating (Amps) :

2.5A AC 350mA DC

Contact Material :

Silver (Ag)

Series :

A

Index Angle :

45 °

Mount :

Panel

Depth Behind Panel :

20.83mm

Mounting Type :

Panel Mount

Max Current Rating :

2.5A

Termination Style :

Solder Lug

Throw Configuration :

SP3T

Electrical Life :

300000 cycles

Housing Material :

Nylon

Published :

2010

Circuit per Deck :

SP3T

Max Voltage Rating (DC) :

125V

Actuator Length :

9.53mm

Min Operating Temperature :

-30°C

Factory Lead Time :

16 Weeks

Current Rating :

2.5A

Voltage - Rated DC :

125V

Actuator Type :

Flatted (6.35mm Dia)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Actuator Material :

Glass, Nylon

Voltage - Rated AC :

125V

Max Operating Temperature :

85°C

Contact Finish :

Gold

Contact Style :

Non-Shorting

Index Stops :

FIXED

Termination :

Solder

Length :

26.19mm

Panel Cutout Dimensions :

Circular - 9.80mm Dia

Number of Decks :

1

Max Voltage Rating (AC) :

125V

Number of Poles per Deck :

1
