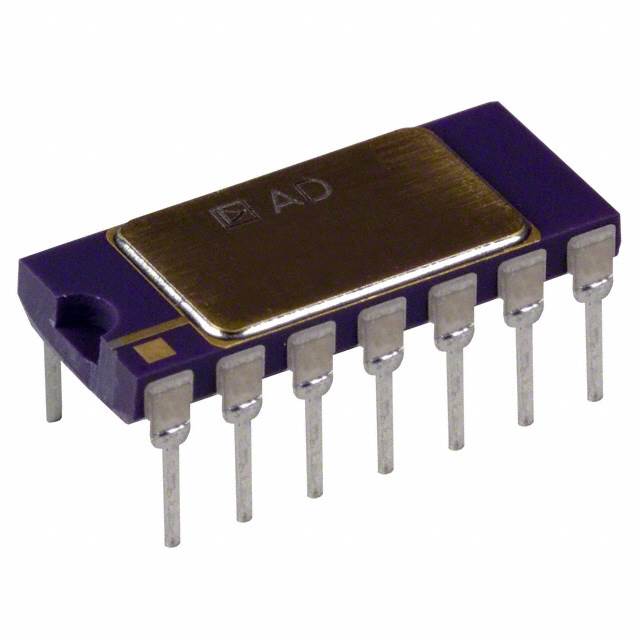

AD521SD

Manufacturer :

Analog Devices, Inc.

Product Category :

Instrumentation, OP Amps, Buffer Amps

Neg Supply Voltage-Nom (Vsup) :

-15V

Qualification Status :

Not Qualified

Terminal Position :

Dual

RoHS Status :

Non-RoHS Compliant

Package / Case :

DIP

Max Operating Temperature :

125°C

Number of Pins :

14

Terminal Finish :

Tin/Lead (Sn63Pb37)

REACH SVHC :

Unknown

Number of Functions :

1

-3db Bandwidth :

2MHz

Current - Input Bias :

40nA

Min Dual Supply Voltage :

5V

Pin Count :

14

Average Bias Current-Max (IIB) :

0.04μA

Amplifier Type :

Instrumentation Amplifier

ECCN Code :

EAR99

Common Mode Rejection Ratio :

74 dB

Supply Voltage :

15V

Packaging :

Rail/Tube

Non-linearity-Max :

0.2%

Gain Bandwidth Product :

40MHz

Bandwidth :

2MHz

Number of Circuits :

1

Voltage Gain-Min :

1

Supply Current-Max :

5mA

Resistance :

10MOhm

Number of Terminations :

14

Input Offset Voltage (Vos) :

1mV

JESD-609 Code :

e0

Reach Compliance Code :

not_compliant

Mount :

Through Hole

Slew Rate :

10 V/µs

Temperature Grade :

Military

Min Operating Temperature :

-55°C

Max Dual Supply Voltage :

18V
