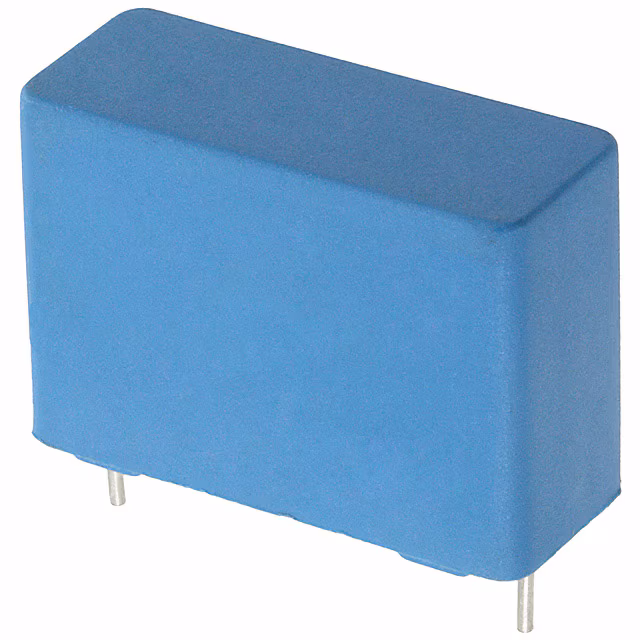

B32023A3154M189

Manufacturer :

EPCOS (TDK)

Product Category :

Film Capacitors

Tolerance :

20%

Moisture Sensitivity Level (MSL) :

--

Voltage - Rated AC :

300V

Mounting Type :

Through Hole

Lead Diameter :

800 µm

Length :

26.5mm

Features :

--

Applications :

EMI, RFI Suppression

Height :

10.5mm

Capacitance :

150nF

ECCN Code :

EAR99

Height Seated (Max) :

18.4912mm

Packaging :

Tape and Reel (TR)

Dielectric Material :

Polypropylene

Lead Pitch :

22.5mm

JESD-609 Code :

e3

Operating Temperature :

-40°C ~ 110°C

Capacitor Type :

FILM CAPACITOR

Number of Terminations :

2

Lead/Base Style :

Straight

Mount :

Through Hole

Depth :

10.5mm

Radiation Hardening :

No

Voltage Rating - AC :

300V

Voltage :

300V

Package / Case :

Radial

Dielectric :

PP

Lead Spacing :

0.886 (22.50mm)

Number of Pins :

2

Series :

B32023

Max Operating Temperature :

110°C

Pbfree Code :

yes

Voltage Rating - DC :

1500V (1.5kV)

Size / Dimension :

1.043 L x 0.413 W (26.50mm x 10.50mm)

Packing Method :

TR

RoHS Status :

RoHS Compliant

Termination :

PC Pins

Terminal Shape :

Wire

Min Operating Temperature :

-40°C

Voltage - Rated DC :

1.5kV

Ratings :

Y2

Height - Seated (Max) :

0.728 (18.50mm)

Width :

10.4902mm
