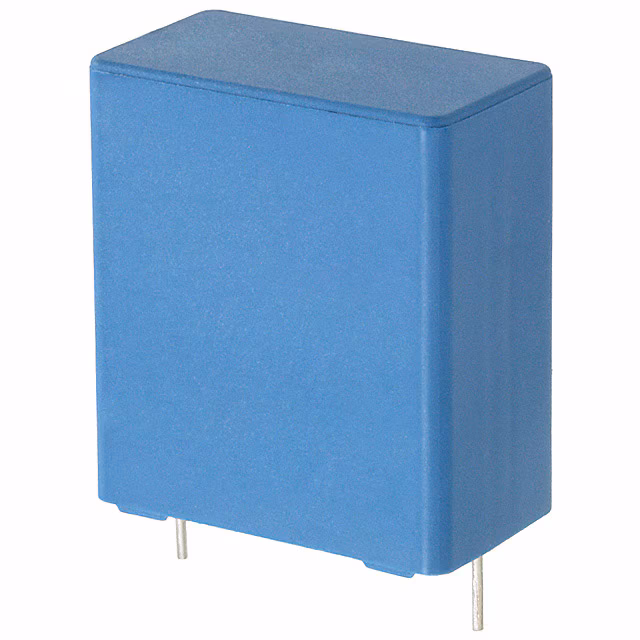

B32023A3394M000
Or copy the link below:
- Mfr.Part #
- B32023A3394M000
- Manufacturer
- EPCOS (TDK)
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 0.39UF 20% 1.5KVDC RAD
- Stock
- 11,128
- In Stock ：
- 11,128
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPCOS (TDK)
- Product Category :
- Film Capacitors
- Mounting Feature :
- THROUGH HOLE MOUNT
- Applications :
- EMI, RFI Suppression
- Features :
- --
- Min Operating Temperature :
- -40°C
- Moisture Sensitivity Level (MSL) :
- --
- ECCN Code :
- EAR99
- Voltage - Rated AC :
- 300V
- Width :
- 29.5mm
- Ratings :
- Y2
- Height :
- 14.5mm
- Packaging :
- Bulk
- Package / Case :
- Radial
- Voltage - Rated DC :
- 1.5kV
- Lead Diameter :
- 800 µm
- RoHS Status :
- RoHS Compliant
- Size / Dimension :
- 1.043 L x 0.571 W (26.50mm x 14.50mm)
- Voltage Rating - AC :
- 300V
- Terminal Finish :
- Matte Tin (Sn)
- Lead/Base Style :
- Straight
- Operating Temperature :
- -40°C ~ 110°C
- Lead Pitch :
- 22.5mm
- Mounting Type :
- Through Hole
- Dielectric Material :
- Polypropylene (PP), Metallized
- Series :
- B32023
- Number of Pins :
- 2
- Capacitor Type :
- FILM CAPACITOR
- Termination :
- PC Pins
- Dielectric :
- PP
- Rated (DC) Voltage (URdc) :
- 1500V
- Terminal Shape :
- Wire
- Capacitance :
- 390nF
- Surface Mount :
- No
- Packing Method :
- Bulk
- Length :
- 26.5mm
- JESD-609 Code :
- e3
- Pbfree Code :
- yes
- Depth :
- 14.5mm
- Lead Spacing :
- 0.886 (22.50mm)
- Height - Seated (Max) :
- 1.161 (29.50mm)
- Tolerance :
- 20%
- Voltage Rating - DC :
- 1500V (1.5kV)
- Max Operating Temperature :
- 110°C
- Number of Terminations :
- 2
- Lifecycle Status :
- Production (Last Updated: 2 months ago)
- Datasheets
- B32023A3394M000
B32023 390nF Film Capacitor 20% Radial PC Pins 1.5kV-DC 300V-AC Polypropylene (PP), Metallized
B32023A3394M000 Overview
To function, systems require a rated (DC) voltage (URdc) of 1500V.Its lead spacing is 0.886 (22.50mm).Temperatures of -40°C ~ 110°C allow the device to operate.
B32023A3394M000 Features
a rated (DC) voltage (URdc) of 1500V
B32023A3394M000 Applications
There are a lot of EPCOS
B32023A3394M000 applications of film capacitors.
- Battery management system
- Test and measuring equipment
- RF Modules
- Mobile communications
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
