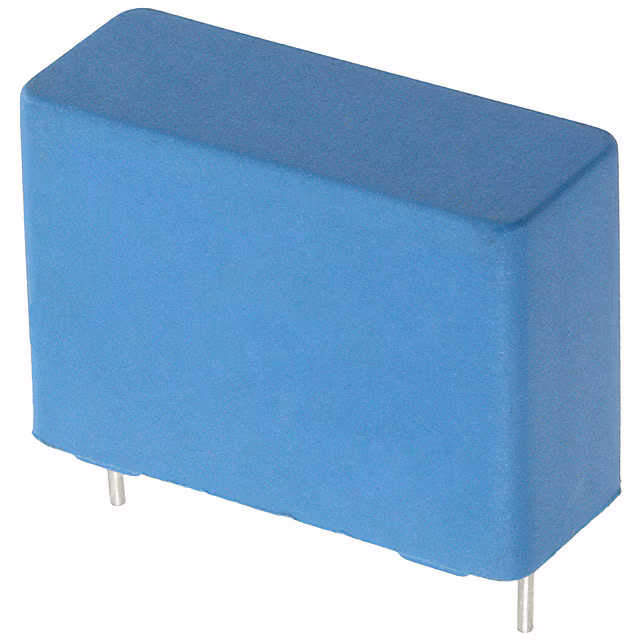

B32023B3154M000
Or copy the link below:
- Mfr.Part #
- B32023B3154M000
- Manufacturer
- EPCOS (TDK)
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 0.15UF 20% 1.5KVDC RAD
- Stock
- 21,827
- In Stock ：
- 21,827
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPCOS (TDK)
- Product Category :
- Film Capacitors
- Number of Terminations :
- 2
- Applications :
- EMI, RFI Suppression
- Terminal Shape :
- Wire
- Dielectric :
- PP
- Size / Dimension :
- 1.043 L x 0.413 W (26.50mm x 10.50mm)
- Mounting Type :
- Through Hole
- JESD-609 Code :
- e3
- Termination :
- PC Pins
- Voltage - Rated AC :
- 300V
- RoHS Status :
- RoHS Compliant
- Dielectric Material :
- Polypropylene (PP), Metallized
- Tolerance :
- 20%
- Mount :
- Through Hole
- Voltage Rating - DC :
- 1500V (1.5kV)
- Features :
- --
- Lifecycle Status :
- Production (Last Updated: 2 months ago)
- Voltage Rating - AC :
- 300V
- Rated (DC) Voltage (URdc) :
- 1500V
- ECCN Code :
- EAR99
- Capacitor Type :
- FILM CAPACITOR
- Operating Temperature :
- -40°C ~ 110°C
- Max Operating Temperature :
- 110°C
- Number of Pins :
- 2
- Ratings :
- Y2
- Height - Seated (Max) :
- 0.807 (20.50mm)
- Contact Plating :
- Tin
- Voltage - Rated DC :
- 1.5kV
- Min Operating Temperature :
- -40°C
- Capacitance :
- 150nF
- Moisture Sensitivity Level (MSL) :
- --
- Width :
- 20.5mm
- Height :
- 10.5mm
- Lead Diameter :
- 800 µm
- Lead/Base Style :
- Straight
- Depth :
- 10.5mm
- Lead Spacing :
- 0.886 (22.50mm)
- Series :
- B32023
- Length :
- 26.5mm
- Pbfree Code :
- yes
- Packaging :
- Bulk
- Lead Pitch :
- 22.5mm
- Package / Case :
- Radial
- Datasheets
- B32023B3154M000
B32023 150nF Film Capacitor 20% Radial PC Pins 1.5kV-DC 300V-AC Polypropylene (PP), Metallized Through Hole
B32023B3154M000 Overview
For systems to operate, a rated (DC) voltage (URdc) of 1500V must be applied internally.Lead spacing is 0.886 (22.50mm) for this electrical device.Devices with a -40°C ~ 110°C temperature capability can be operated.
B32023B3154M000 Features
a rated (DC) voltage (URdc) of 1500V
B32023B3154M000 Applications
There are a lot of EPCOS
B32023B3154M000 applications of film capacitors.
- Test and measuring equipment
- RF Modules
- Mobile communications
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
- Filtering
