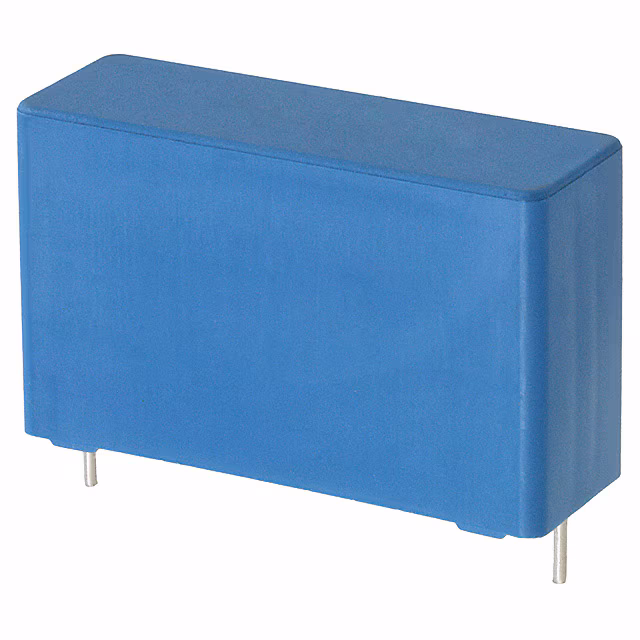

B32026A3474M000

Manufacturer :

EPCOS (TDK)

Product Category :

Film Capacitors

Packaging :

Bulk

Height - Seated (Max) :

0.984 (25.00mm)

Length :

41.5mm

Surface Mount :

No

Max Operating Temperature :

110°C

Voltage Rating - DC :

1500V (1.5kV)

Moisture Sensitivity Level (MSL) :

--

Lead Diameter :

1 mm

Capacitance :

470nF

Terminal Finish :

Matte Tin (Sn)

Dielectric Material :

Polypropylene

Dielectric :

PP

Tolerance :

20%

ECCN Code :

EAR99

Lead Spacing :

1.476 (37.50mm)

Additional Feature :

RATED AC VOLTAGE(V): 300, SAFETY CLASS Y2

Pbfree Code :

yes

Voltage Rating - AC :

300V

Termination :

PC Pins

HTS Code :

8532.25.00.70

Depth :

14mm

Series :

B32026

REACH SVHC :

No SVHC

Applications :

EMI, RFI Suppression

Mounting Type :

Through Hole

Number of Terminations :

2

Mounting Feature :

THROUGH HOLE MOUNT

RoHS Status :

RoHS Compliant

Rated (DC) Voltage (URdc) :

1500V

Voltage - Rated DC :

1.5kV

Min Operating Temperature :

-40°C

Terminal Shape :

Wire

Ratings :

Y2

Features :

--

JESD-609 Code :

e3

Operating Temperature :

-40°C ~ 110°C

Height :

25mm

Voltage - Rated AC :

300V

Lead Pitch :

37.5mm

Size / Dimension :

1.634 L x 0.551 W (41.50mm x 14.00mm)

Width :

14mm

Capacitor Type :

FILM CAPACITOR
