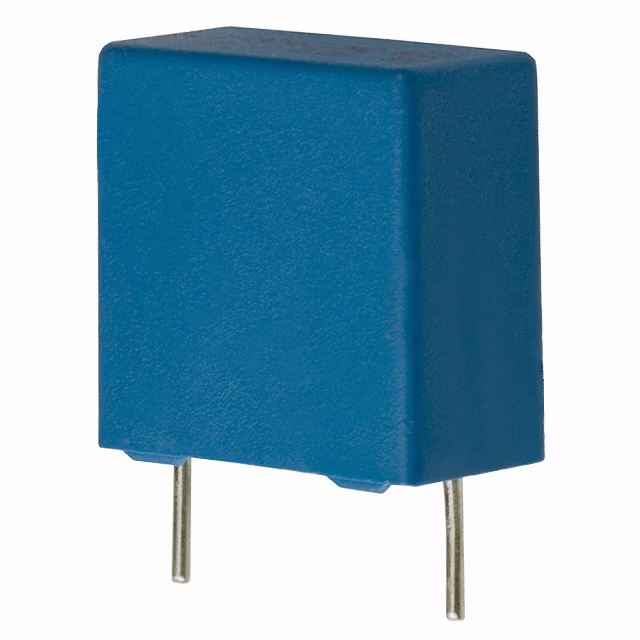

B81123C1222M289

Manufacturer :

EPCOS (TDK)

Product Category :

Film Capacitors

Dielectric :

PP

Lead Diameter :

800 µm

Rated (DC) Voltage (URdc) :

3000V

Voltage - Rated AC :

500V

Height - Seated (Max) :

0.492 (12.50mm)

Applications :

EMI, RFI Suppression

JESD-609 Code :

e3

HTS Code :

8532.25.00.70

Packaging :

Tape and Box (TB)

Mounting Type :

Through Hole

Height Seated (Max) :

12.4968mm

Features :

--

Min Operating Temperature :

-40°C

Rated (AC) Voltage (URac) :

250V

Size Code :

7128

Terminal Shape :

Wire

Voltage Rating - AC :

500V

Ratings :

Y1

Pbfree Code :

yes

Max Operating Temperature :

110°C

Dielectric Material :

Polypropylene

Series :

B81123

Width :

7.0104mm

Size / Dimension :

0.709 L x 0.276 W (18.00mm x 7.00mm)

Additional Feature :

RATED AC VOLTAGE (V): 250; REFERENCE STANDARD: IEC60384-14, SAFETY CLASS Y1

Terminal Pitch :

15mm

Package / Case :

Radial

Moisture Sensitivity Level (MSL) :

--

Termination :

PC Pins

ECCN Code :

EAR99

RoHS Status :

RoHS Compliant

Tolerance :

20%

Voltage Rating - DC :

--

Number of Terminations :

2

Depth :

7mm

Packing Method :

Ammo Pack

Capacitor Type :

FILM CAPACITOR

Terminal Finish :

Tin (Sn)

Capacitance :

2.2nF

Length :

18.0086mm

Lead Pitch :

15.0114mm

Lead Spacing :

0.591 (15.00mm)

Operating Temperature :

-40°C ~ 110°C
