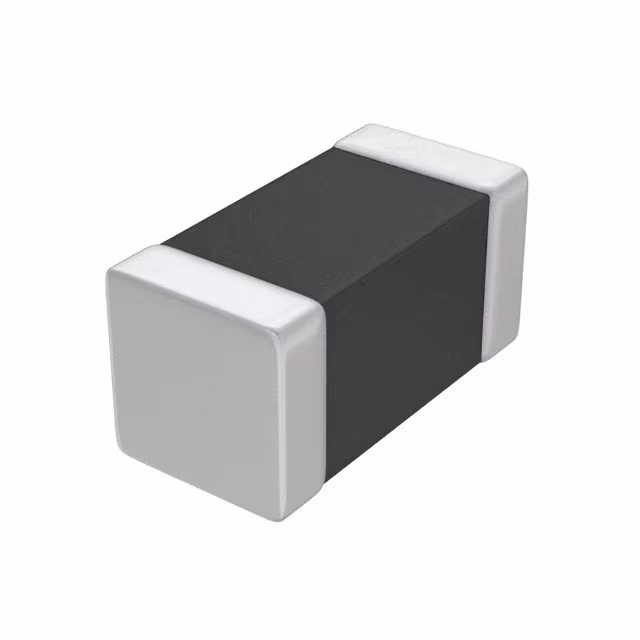

BLM18HE601SH1D

Manufacturer :

Murata Electronics

Product Category :

Ferrite Beads and Chips

Impedance @ Frequency :

600 Ohms @ 100 MHz

Series :

BLM18H_SH

Width :

0.8 mm

Type :

Chip Ferrite Bead

Impedance :

600Ohm

Height (Max) :

0.037 (0.95mm)

Product Width :

0.8mm

Diameter :

-

Subcategory :

Ferrites

Operating Temperature :

-55°C ~ 125°C

Packaging :

MouseReel

Maximum Operating Temperature :

+ 125 C

Ratings :

AEC-Q200

Current Rating (Max) :

800mA

Size / Dimension :

0.063 L x 0.031 W (1.60mm x 0.80mm)

Termination Style :

SMD/SMT

Factory Lead Time :

7 Weeks

Product Type :

Ferrite Beads

Number of Lines :

1

Package :

Tape and Reel (TR)

Length :

1.6 mm

Mounting Type :

Surface Mount

DC Resistance (DCR) (Max) :

250mOhm

Product Category :

Ferrite Beads

Package / Case :

0603 (1608 Metric)

Impedance Tolerance :

± 25%

Minimum Operating Temperature :

- 55 C

Product Height :

0.8mm

Qualification :

AEC-Q200

RoHS :

Details

Package Type :

0603

Dimensions :

1.6 x 0.8 x 0.8mm

Tolerance :

25 %

Manufacturer :

Murata

Reach Compliance Code :

Compliant

Product :

Ferrite Beads

Brand :

Murata Electronics

Product Status :

Active

Height :

0.8 mm

Product Length :

1.6mm

Filter Type :

Power Line
