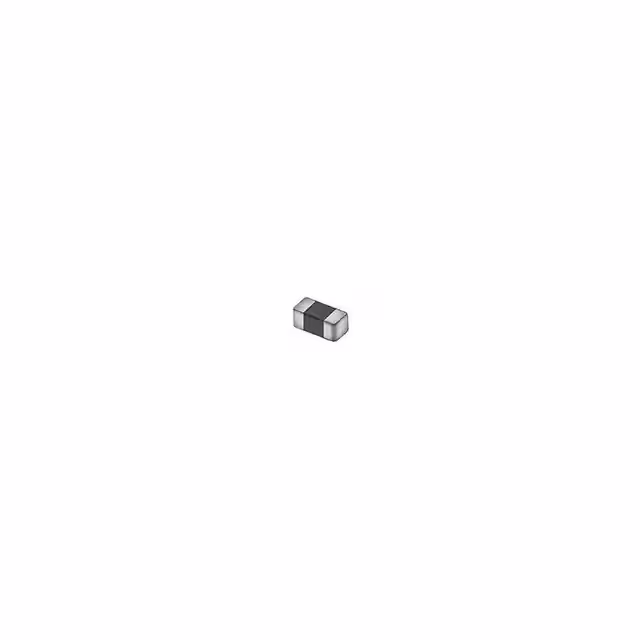

BLM18KN102EH1D

Manufacturer :

Murata Electronics

Product Category :

Ferrite Beads and Chips

Test Frequency :

100 MHz

Maximum Operating Temperature :

+ 175 C

Product Status :

Active

Manufacturer :

Murata

RoHS :

Details

Dimensions :

1.6 x 0.8 x 0.8mm

Size / Dimension :

0.063" L x 0.031" W (1.60mm x 0.80mm)

Product Type :

Ferrite Beads

Product Width :

0.8mm

Series :

BLM

Diameter :

-

Packaging :

MouseReel

Operating Temperature Range :

- 55 C to + 175 C

Length :

1.6 mm

Filter Type :

Power Line

Product :

Ferrite Chip Beads

Qualification :

AEC-Q200

Package :

Digi-Reel?

Brand :

Murata Electronics

Package Type :

0603

Number of Elements :

2 Element

Impedance :

1kOhm

Number of Channels :

1 Channel

Current Rating (Max) :

740mA

Product Length :

1.6mm

Impedance Tolerance :

± 25%

Minimum Operating Temperature :

- 55 C

Impedance @ Frequency :

1 kOhms @ 100 MHz

Number of Lines :

1

Height (Max) :

0.037" (0.95mm)

DC Resistance (DCR) (Max) :

200mOhm

Subcategory :

Ferrites

Operating Temperature :

-55°C ~ 175°C

Ratings :

AEC-Q200

Tolerance :

25 %

Mounting Type :

Surface Mount

Height :

0.8 mm

Width :

0.8 mm

Termination Style :

SMD/SMT

Type :

Chip Ferrite Bead

Product Height :

0.8mm

Package / Case :

0603 (1608 Metric)

Product Category :

Ferrite Beads
