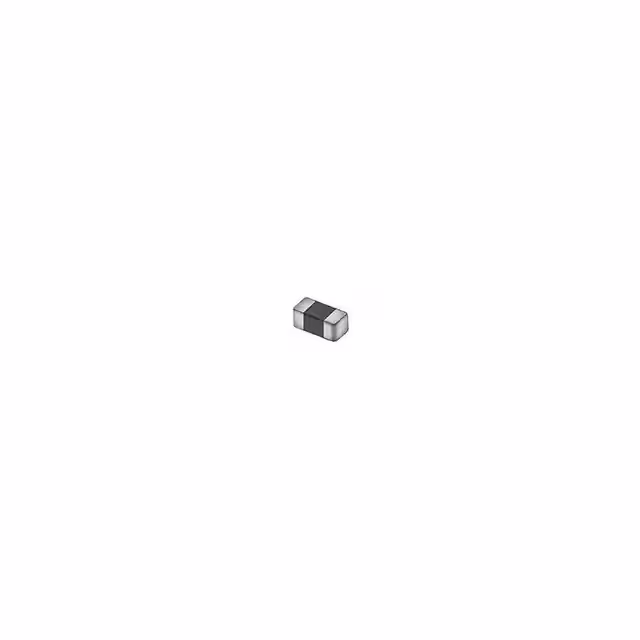

BLM18KN300EH1D

Manufacturer :

Murata Electronics

Product Category :

Ferrite Beads and Chips

Impedance @ Frequency :

30 Ohms @ 100 MHz

Mounting Type :

Surface Mount

Width :

0.8 mm

Operating Temperature :

-55°C ~ 175°C

Operating Temperature Range :

- 55 C to + 175 C

Package :

Digi-Reel?

Number of Lines :

1

Product Width :

0.8mm

Current Rating (Max) :

2.6A

Diameter :

-

Minimum Operating Temperature :

- 55 C

Test Frequency :

100 MHz

Height :

0.6 mm

Package Type :

0603

Product Category :

Ferrite Beads

Package / Case :

0603 (1608 Metric)

Maximum Operating Temperature :

+ 175 C

Termination Style :

SMD/SMT

Packaging :

MouseReel

Product Type :

Ferrite Beads

Product :

Ferrite Chip Beads

Tolerance :

25 %

Filter Type :

Power Line

Number of Channels :

1 Channel

Brand :

Murata Electronics

DC Resistance (DCR) (Max) :

10MOhm

Height (Max) :

0.030" (0.75mm)

Type :

Chip Ferrite Bead

Subcategory :

Ferrites

Manufacturer :

Murata

Impedance :

30Ohm

Dimensions :

1.6 x 0.8 x 0.6mm

Product Status :

Active

Product Length :

1.6mm

Impedance Tolerance :

± 25%

Size / Dimension :

0.063" L x 0.031" W (1.60mm x 0.80mm)

Ratings :

AEC-Q200

Product Height :

0.6mm

RoHS :

Details

Length :

1.6 mm

Series :

BLM

Qualification :

AEC-Q200

Number of Elements :

2 Element
