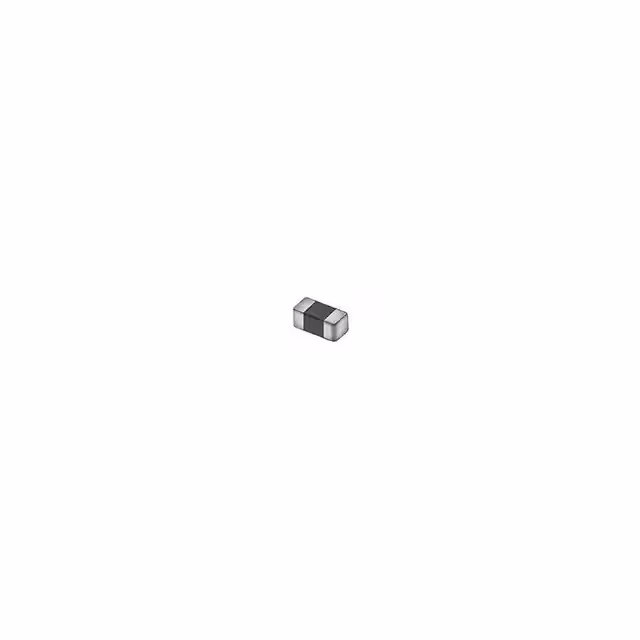

BLM18KN471EH1D

Manufacturer :

Murata Electronics

Product Category :

Ferrite Beads and Chips

Number of Channels :

1 Channel

Brand :

Murata Electronics

Product :

Ferrite Chip Beads

Type :

Chip Ferrite Bead

Impedance Tolerance :

± 25%

Operating Temperature Range :

- 55 C to + 175 C

Maximum Operating Temperature :

+ 175 C

Termination Style :

SMD/SMT

Product Height :

0.8mm

Product Length :

1.6mm

Mounting Type :

Surface Mount

Product Type :

Ferrite Beads

Number of Lines :

1

Package Type :

0603

Packaging :

MouseReel

Product Width :

0.8mm

Filter Type :

Power Line

Subcategory :

Ferrites

Series :

BLM

Operating Temperature :

-55°C ~ 175°C

Size / Dimension :

0.063" L x 0.031" W (1.60mm x 0.80mm)

Number of Elements :

2 Element

Height :

0.8 mm

DC Resistance (DCR) (Max) :

130mOhm

Qualification :

AEC-Q200

Current Rating (Max) :

920mA

Test Frequency :

100 MHz

Length :

1.6 mm

RoHS :

Details

Width :

0.8 mm

Package / Case :

0603 (1608 Metric)

Minimum Operating Temperature :

- 55 C

Package :

Digi-Reel?

Product Category :

Ferrite Beads

Manufacturer :

Murata

Dimensions :

1.6 x 0.8 x 0.8mm

Product Status :

Active

Ratings :

AEC-Q200

Impedance :

470Ohm

Height (Max) :

0.037" (0.95mm)

Impedance @ Frequency :

470 Ohms @ 100 MHz
