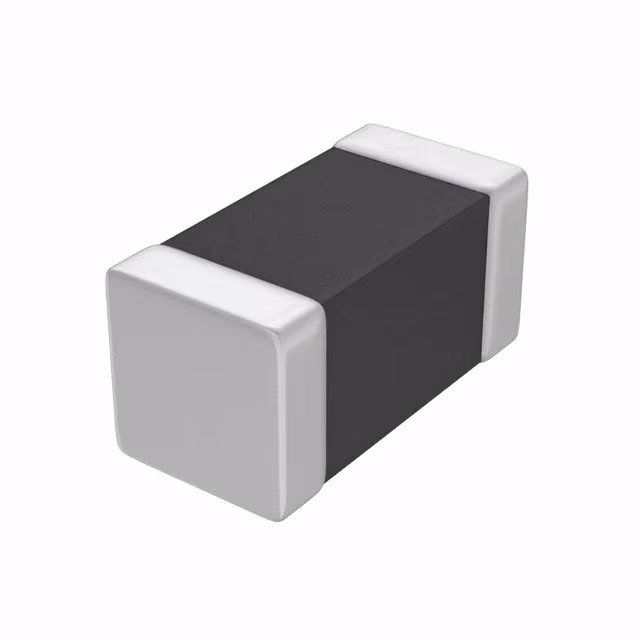

BLM18SP101SN1D

Manufacturer :

Murata Electronics

Product Category :

Ferrite Beads and Chips

Type :

Chip Ferrite Bead

Package :

Digi-Reel?

Height (Max) :

0.037" (0.95mm)

Number of Lines :

1

Minimum Operating Temperature :

- 55 C

Product Status :

Active

Operating Temperature :

-55°C ~ 125°C

Packaging :

MouseReel

Ratings :

-

Brand :

Murata Electronics

Impedance @ Frequency :

100 Ohms @ 100 MHz

Impedance Tolerance :

25

Current Rating (Max) :

3.7A

Product Height :

0.8mm

Tolerance :

25 %

Mounting Type :

Surface Mount

Package / Case :

0603 (1608 Metric)

Maximum Operating Temperature :

+ 125 C

Product Category :

Ferrite Beads

Width :

0.8 mm

Qualification :

-

Length :

1.6 mm

RoHS :

Details

Filter Type :

Power Line

Manufacturer :

Murata

Number of Channels :

1 Channel

Product Type :

Ferrite Beads

Size / Dimension :

0.063" L x 0.031" W (1.60mm x 0.80mm)

Diameter :

-

Product Length :

1.6 mm

Product Width :

0.6 mm

Termination Style :

SMD/SMT

Height :

0.6 mm

Package Type :

0603

Product :

Ferrite Chip Beads

DC Resistance (DCR) (Max) :

22mOhm

Series :

BLM

Dimensions :

1.6 x 0.8 x 0.8mm

Subcategory :

Ferrites

Impedance :

100 Ohm
