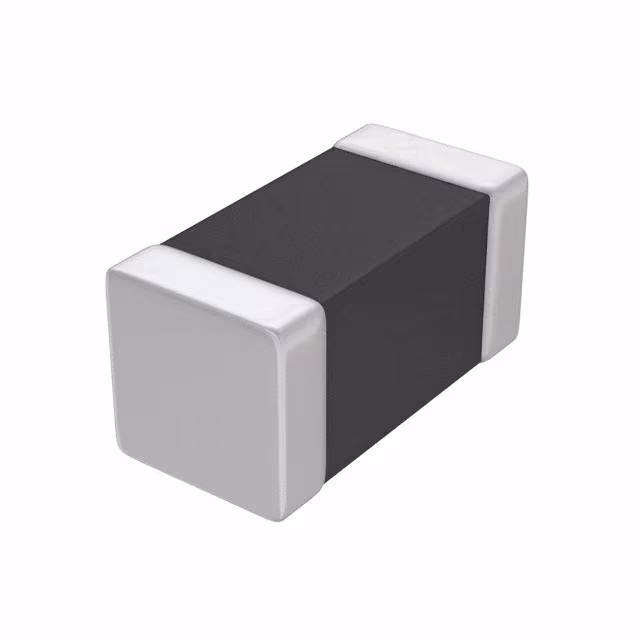

BLM18SP101SZ1D

Manufacturer :

Murata Electronics

Product Category :

Ferrite Beads and Chips

Termination Style :

SMD/SMT

Package / Case :

0603 (1608 Metric)

Tolerance :

25 %

Product Status :

Active

Subcategory :

Ferrites

Impedance Tolerance :

± 25%

Product Type :

Ferrite Beads

Package Type :

0603

Dimensions :

1.6 x 0.8 x 0.8mm

Product Width :

0.8mm

Filter Type :

Power Line

Ratings :

AEC-Q200

DC Resistance (DCR) (Max) :

22mOhm

Minimum Operating Temperature :

- 55 C

Maximum Operating Temperature :

+ 125 C

Size / Dimension :

0.063" L x 0.031" W (1.60mm x 0.80mm)

Height :

0.6 mm

Package :

Digi-Reel?

Diameter :

-

Type :

Chip Ferrite Bead

Impedance @ Frequency :

100 Ohms @ 100 MHz

Brand :

Murata Electronics

Product Category :

Ferrite Beads

Number of Lines :

1

Packaging :

MouseReel

Qualification :

AEC-Q200

Impedance :

100Ohm

Product Length :

1.6mm

Width :

0.8 mm

Number of Channels :

1 Channel

RoHS :

Details

Height (Max) :

0.037" (0.95mm)

Length :

1.6 mm

Current Rating (Max) :

3.7A

Mounting Type :

Surface Mount

Manufacturer :

Murata

Operating Temperature :

-55°C ~ 125°C

Product :

Ferrite Chip Beads

Product Height :

0.8mm

Series :

BLM
