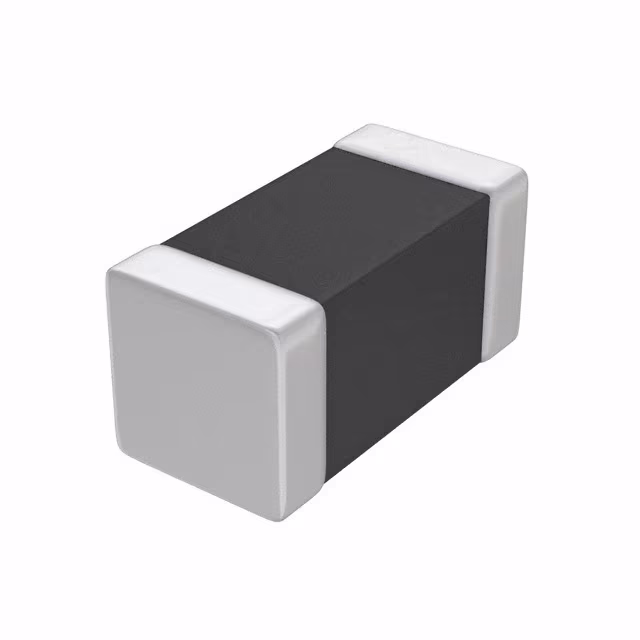

BLM18SP221SH1D

Manufacturer :

Murata Electronics

Product Category :

Ferrite Beads and Chips

Mounting Type :

Surface Mount

Product :

Ferrite Chip Beads

Operating Temperature :

-55°C ~ 125°C

Number of Lines :

1

Number of Channels :

1 Channel

Impedance :

220Ohm

Current Rating (Max) :

2.8A

Product Height :

0.8mm

DC Resistance (DCR) (Max) :

40mOhm

Filter Type :

Power Line

Maximum Operating Temperature :

+ 125 C

Height (Max) :

0.037" (0.95mm)

Series :

BLM

Package / Case :

0603 (1608 Metric)

Width :

0.8 mm

Manufacturer :

Murata

Package Type :

0603

Dimensions :

1.6 x 0.8 x 0.8mm

Product Status :

Active

Qualification :

AEC-Q200

Tolerance :

25 %

Height :

0.6 mm

Subcategory :

Ferrites

Minimum Operating Temperature :

- 55 C

Length :

1.6 mm

Package :

Digi-Reel?

Type :

Chip Ferrite Bead

Size / Dimension :

0.063" L x 0.031" W (1.60mm x 0.80mm)

Impedance @ Frequency :

220 Ohms @ 100 MHz

Product Width :

0.8 mm

Ratings :

AEC-Q200

RoHS :

Details

Product Category :

Ferrite Beads

Packaging :

MouseReel

Termination Style :

SMD/SMT

Impedance Tolerance :

25

Brand :

Murata Electronics

Product Type :

Ferrite Beads

Diameter :

-

Product Length :

1.6 mm
