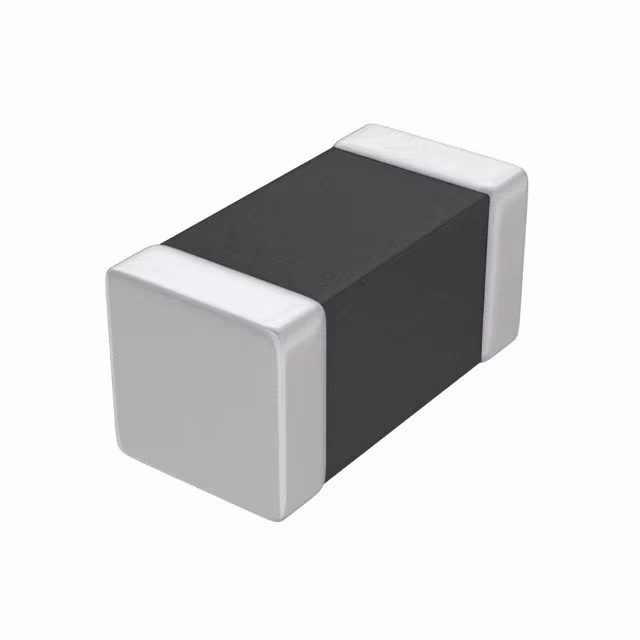

BLM18SP300SH1D

Manufacturer :

Murata Electronics

Product Category :

Ferrite Beads and Chips

Package Type :

0603

Packaging :

Tape and Reel

DC Current :

6000(mA)

Operating Temperature :

-55°C ~ 125°C

Mounting Type :

Surface Mount

Current Rating (Max) :

6A

Size / Dimension :

0.063" L x 0.031" W (1.60mm x 0.80mm)

Package / Case :

0603 (1608 Metric)

Manufacturer :

Murata

Diameter :

-

Operating Temp Range :

-55C to 125C

Number of Lines :

1

DC Resistance (DCR) (Max) :

8mOhm

Impedance :

30(ohm)

Termination Style :

SMD/SMT

Tolerance (+ or -) :

10Ohm

Product Status :

Active

Maximum Operating Temperature :

+ 125 C

Qualification :

AEC-Q200

Product Type :

Ferrite Beads

Case Style :

0603

Product Category :

Ferrite Beads

Package :

Digi-Reel?

Product Height (mm) :

0.95(mm)

Minimum Operating Temperature :

- 55 C

Ratings :

AEC-Q200

Test Frequency :

100(MHz)

Product Height :

0.8mm

Product :

Ferrite Chip Beads

DC Resistance :

0.008(ohm)

Filter Type :

Power Line

Product Length (mm) :

1.75(mm)

Tolerance :

25 %

Number of Channels :

1 Channel

Width :

0.8 mm

Series :

BLM

Product Length :

1.6mm

Product Width :

0.8mm

Brand :

Murata Electronics

Length :

1.6 mm

Height :

0.6 mm

RoHS :

Details

Height (Max) :

0.037" (0.95mm)

Dimensions :

1.6 x 0.8 x 0.8mm

Impedance Tolerance :

± 10ohm

Type :

Chip Ferrite Bead

Impedance @ Frequency :

30 Ohms @ 100 MHz

Product Depth (mm) :

0.95(mm)

Subcategory :

Ferrites

Product Diameter (mm) :

Not Required(mm)
