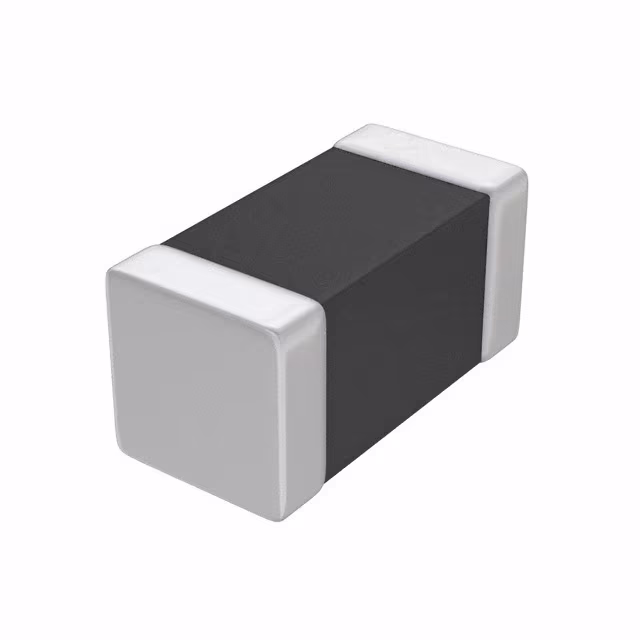

BLM18SP300SN1D

Manufacturer :

Murata Electronics

Product Category :

Ferrite Beads and Chips

Height :

0.6 mm

Product Width :

0.8mm

Maximum Operating Temperature :

+ 125 C

Series :

BLM

Current Rating (Max) :

6A

Number of Lines :

1

Filter Type :

Power Line

Dimensions :

1.6 x 0.8 x 0.8mm

DC Resistance (DCR) (Max) :

8mOhm

Number of Channels :

1 Channel

Tolerance :

25 %

Qualification :

-

Impedance :

30Ohm

Operating Temperature :

-55°C ~ 125°C

Brand :

Murata Electronics

Diameter :

-

RoHS :

Details

Product :

Ferrite Chip Beads

Impedance Tolerance :

± 10ohm

Packaging :

MouseReel

Package :

Digi-Reel?

Subcategory :

Ferrites

Product Length :

1.6mm

Product Height :

0.8mm

Product Category :

Ferrite Beads

Mounting Type :

Surface Mount

Manufacturer :

Murata

Size / Dimension :

0.063" L x 0.031" W (1.60mm x 0.80mm)

Width :

0.8 mm

Package / Case :

0603 (1608 Metric)

Minimum Operating Temperature :

- 55 C

Package Type :

0603

Impedance @ Frequency :

30 Ohms @ 100 MHz

Product Status :

Active

Termination Style :

SMD/SMT

Product Type :

Ferrite Beads

Length :

1.6 mm

Type :

Chip Ferrite Bead

Ratings :

-

Height (Max) :

0.037" (0.95mm)
