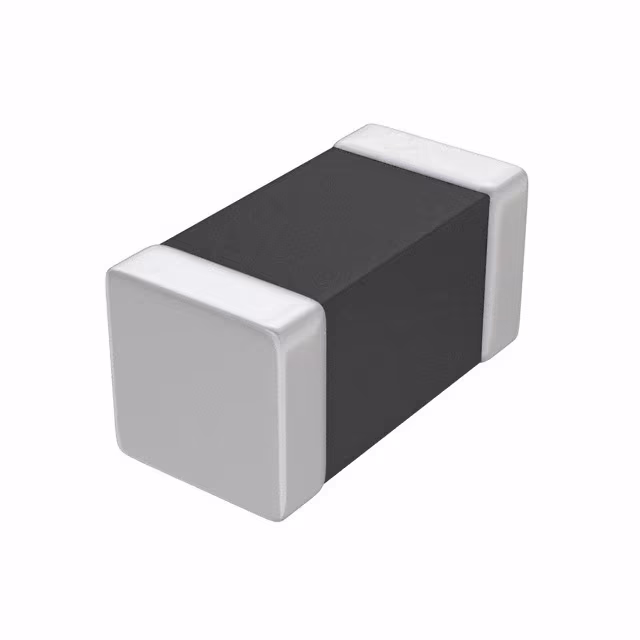

BLM18SP601SH1D

Manufacturer :

Murata Electronics

Product Category :

Ferrite Beads and Chips

Packaging :

Tape and Reel

Product Length :

1.6mm

Product Height :

0.8mm

Test Frequency :

100(MHz)

Tolerance :

25 %

DC Current :

1500(mA)

Current Rating (Max) :

1.5A

Product Status :

Active

Brand :

Murata Electronics

Product Height (mm) :

0.95(mm)

Product Depth (mm) :

0.95(mm)

Tolerance (+ or -) :

25%

Impedance @ Frequency :

600 Ohms @ 100 MHz

Diameter :

-

Minimum Operating Temperature :

- 55 C

Impedance :

600(ohm)

Product :

Ferrite Chip Beads

Series :

BLM

Qualification :

AEC-Q200

Number of Channels :

1 Channel

Product Type :

Ferrite Beads

Product Length (mm) :

1.75(mm)

Mounting Type :

Surface Mount

Termination Style :

SMD/SMT

Ratings :

AEC-Q200

Length :

1.6 mm

Product Diameter (mm) :

Not Required(mm)

Operating Temperature :

-55°C ~ 125°C

Filter Type :

Power Line

Maximum Operating Temperature :

+ 125 C

Height :

0.6 mm

Package / Case :

0603 (1608 Metric)

Manufacturer :

Murata

Product Width :

0.8mm

Type :

Chip Ferrite Bead

Subcategory :

Ferrites

Package :

Digi-Reel?

Package Type :

0603

DC Resistance :

0.14(ohm)

Number of Lines :

1

Product Category :

Ferrite Beads

RoHS :

Details

Size / Dimension :

0.063" L x 0.031" W (1.60mm x 0.80mm)

Height (Max) :

0.037" (0.95mm)

Dimensions :

1.6 x 0.8 x 0.8mm

Case Style :

0603

Operating Temp Range :

-55C to 125C

Impedance Tolerance :

± 25%

DC Resistance (DCR) (Max) :

140mOhm

Width :

0.8 mm
