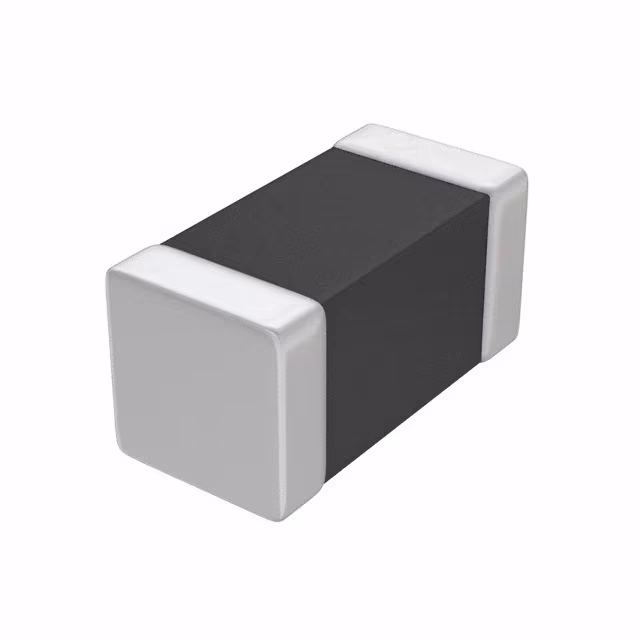

BLM18SP601SZ1D

Manufacturer :

Murata Electronics

Product Category :

Ferrite Beads and Chips

Size / Dimension :

0.063" L x 0.031" W (1.60mm x 0.80mm)

Package Type :

0603

Product Type :

Ferrite Beads

Tolerance :

25 %

Diameter :

-

Number of Channels :

1 Channel

Packaging :

MouseReel

Subcategory :

Ferrites

Length :

1.6 mm

Type :

Chip Ferrite Bead

Current Rating (Max) :

1.5A

Product Width :

0.8mm

Impedance :

600Ohm

Number of Lines :

1

Product Height :

0.8mm

Package :

Digi-Reel?

Product Status :

Active

Termination Style :

SMD/SMT

Width :

0.8 mm

Impedance @ Frequency :

600 Ohms @ 100 MHz

Product Category :

Ferrite Beads

Mounting Type :

Surface Mount

Product Length :

1.6mm

Dimensions :

1.6 x 0.8 x 0.8mm

Series :

BLM

Height (Max) :

0.037" (0.95mm)

Qualification :

AEC-Q200

Maximum Operating Temperature :

+ 125 C

Manufacturer :

Murata

Product :

Ferrite Chip Beads

Minimum Operating Temperature :

- 55 C

Package / Case :

0603 (1608 Metric)

Height :

0.6 mm

Impedance Tolerance :

± 25%

Brand :

Murata Electronics

Operating Temperature :

-55°C ~ 125°C

RoHS :

Details

Ratings :

AEC-Q200

Filter Type :

Power Line

DC Resistance (DCR) (Max) :

140mOhm
