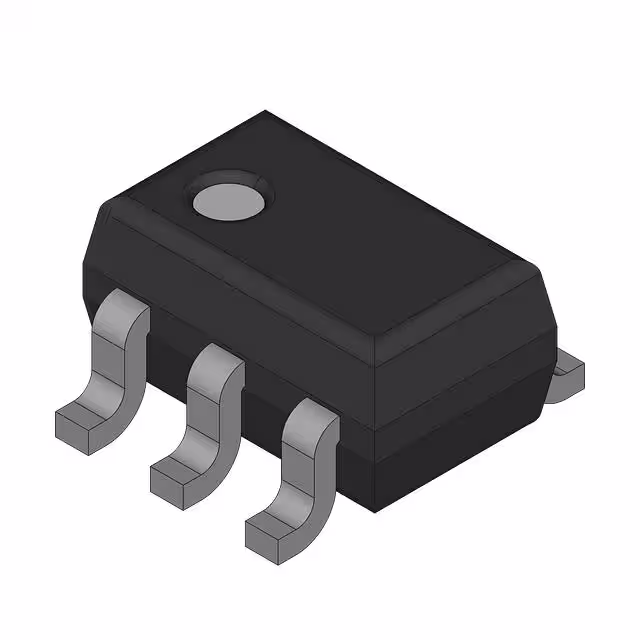

BSD314SPE L6327

Manufacturer :

Infineon Technologies

Product Category :

Transistors - FETs, MOSFETs - Single

Rad Hardened :

No

Input Capacitance (Ciss) (Max) @ Vds :

294 pF @ 15 V

Operating Temperature Classification :

Military

Technology :

MOSFET (Metal Oxide)

Package / Case :

6-VSSOP, SC-88, SOT-363

Supplier Device Package :

PG-SOT363-6-6

Current - Continuous Drain (Id) @ 25°C :

1.5A (Ta)

Power Dissipation :

0.5(W)

Vgs (Max) :

±20V

Drive Voltage (Max Rds On, Min Rds On) :

4.5V, 10V

Gate-Source Voltage (Max) :

±20(V)

Rds On (Max) @ Id, Vgs :

140mOhm @ 1.5A, 10V

Channel Mode :

Enhancement

Mounting Type :

Surface Mount

Operating Temp Range :

-55C to 150C

FET Type :

P-Channel

Number of Elements :

1

Series :

OptiMOS™-P 3

Polarity :

P

Operating Temperature :

-55°C ~ 150°C (TJ)

Drain to Source Voltage (Vdss) :

30 V

Vgs(th) (Max) @ Id :

2V @ 6.3µA

Gate Charge (Qg) (Max) @ Vgs :

2.9 nC @ 10 V

Continuous Drain Current :

1.5(A)

Pin Count :

6

Package Type :

SOT-363

FET Feature :

-

Package :

Bulk

Drain-Source On-Volt :

30(V)

Power Dissipation (Max) :

500mW (Ta)

Product Status :

Active

Packaging :

Tape and Reel

Type :

Small Signal

Mounting :

Surface Mount
