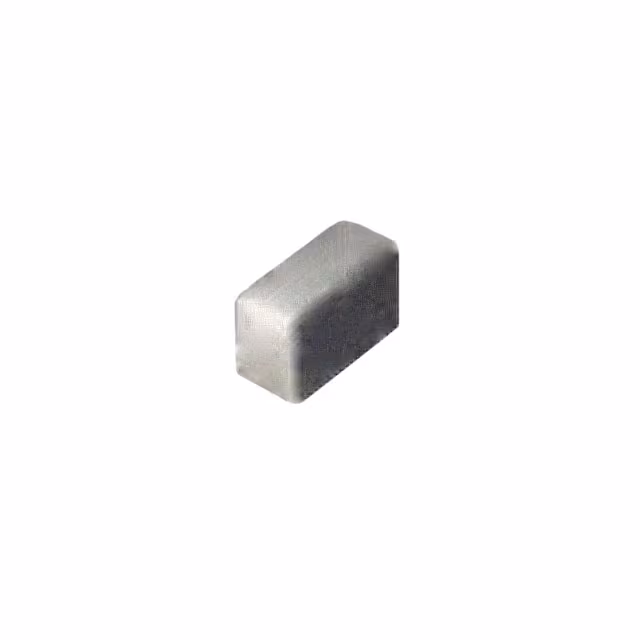

BSPQ000603041N2B00

Manufacturer :

Pulse Electronics

Product Category :

Fixed Inductors

Termination :

Standard

Product :

RF Inductors

Saturation Current :

1.1 A

Packaging :

Reel

Core Type :

Multilayer

DC Resistance (DCR) :

40mOhm Max

Application :

RF

Length :

0.6 mm

Ratings :

-

Q @ Freq :

20 @ 500MHz

Mounting Style :

PCB Mount

Maximum Operating Temperature :

+ 125 C

Series :

BSPQ

Package :

Digi-Reel?

Width :

0.3 mm

Inductance :

1.2 nH

Height :

0.4 mm

Type :

Thick Film

Frequency - Self Resonant :

13GHz

Current - Saturation (Isat) :

-

Supplier Device Package :

0201

Subcategory :

Inductors, Chokes and Coils

Package / Case :

0201 (0603 Metric)

Inductance Frequency - Test :

500 MHz

Self Resonant Frequency :

13 GHz

Brand :

Pulse Electronics

Manufacturer :

Pulse

Mounting Type :

Surface Mount

Current Rating (Amps) :

1.1 A

Core Material :

Ceramic

Features :

-

Test Frequency :

500 MHz

Shielding :

Unshielded

Tolerance :

±0.1nH

RoHS :

Details

Termination Style :

SMD/SMT

Product Category :

RF Inductors - SMD

Minimum Operating Temperature :

- 55 C

Material - Core :

Ceramic

Operating Temperature :

-55°C ~ 125°C

Height - Seated (Max) :

0.017" (0.43mm)

Product Type :

Fixed Inductors

Size / Dimension :

0.024" L x 0.012" W (0.60mm x 0.30mm)

Product Status :

Active
