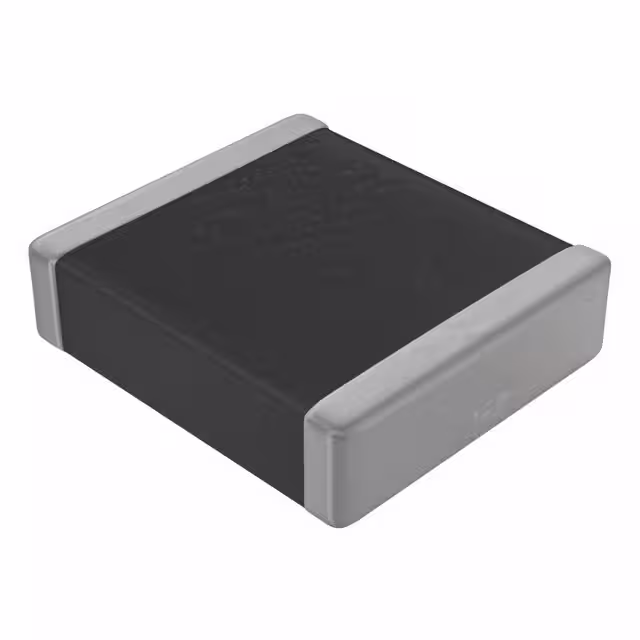

C2220C101JHGACAUTO

Manufacturer :

KEMET

Product Category :

Ceramic Capacitors

Operating Temperature :

-55°C ~ 125°C

Applications :

Automotive

Pbfree Code :

yes

Negative Tolerance :

5%

Ratings :

AEC-Q200

Temperature Characteristics Code :

C0G

Size / Dimension :

0.224" L x 0.197" W (5.70mm x 5.00mm)

Reference Standard :

AEC-Q200

Rated (DC) Voltage (URdc) :

3000 V

Thickness (Max) :

0.071" (1.80mm)

Lead Spacing :

-

Manufacturer :

KEMET

Size Code :

2220

Class :

Class 1

Termination :

Standard

Terminal Finish :

Matte Tin (Sn) - with Nickel (Ni) barrier

Lead Style :

-

RoHS :

Details

Qualification :

AEC-Q200

JESD-609 Code :

e3

Dielectric Material :

Ceramic

Surface Mount :

yes

ECCN Code :

EAR99

Capacitance :

100 pF

Minimum Operating Temperature :

- 55 C

Maximum Operating Temperature :

+ 125 C

Package Shape :

RECTANGULAR PACKAGE

Subcategory :

Capacitors

Series :

SMD Auto C0G HV

Product Category :

Multilayer Ceramic Capacitors MLCC - SMD/SMT

Height :

1.6 mm

Brand :

KEMET

Package / Case :

2220 (5750 Metric)

Type :

High Voltage C0G Dielectric Commercial MLCCs

Product Type :

Ceramic Capacitors

Product :

General Type MLCCs

Packaging :

Reel

Dielectric :

C0G (NP0)

Multilayer :

yes

HTS Code :

8532.24.00.20

Package :

Cut Tape (CT)

Number of Terminals :

2

Reach Compliance Code :

Compliant

Tradename :

FT-CAP

Termination Style :

SMD/SMT

Tolerance :

±5%

Width :

5 mm

Height - Seated (Max) :

-

Terminal Shape :

WRAPAROUND

Voltage - Rated :

3000V (3kV)

Length :

5.7 mm

Features :

Low ESL, High Voltage

Product Status :

Active

Positive Tolerance :

5%

Temperature Coefficient :

C0G, NP0

Mounting Feature :

Surface Mount

Failure Rate :

-

Base Product Number :

C2220C

Capacitor Type :

CERAMIC CAPACITOR

Packing Method :

TR, Embossed Plastic, 7 Inch

Mounting Type :

Surface Mount, MLCC
