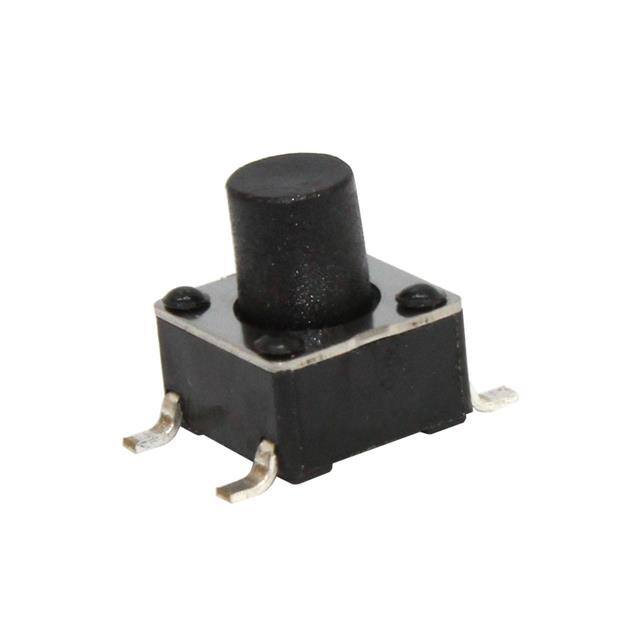

CS11027.0F260

Manufacturer :

CIT Relay and Switch

Product Category :

Operating Force :

260gf

Illumination :

Non-Illuminated

Illumination Voltage (Nominal) :

-

Shielding :

Unshielded

Orientation :

W

Shell Size, MIL :

-

Current Rating (Amps) :

7.5A

Circuit :

SPST-NO

Contact Finish - Mating :

Gold

Actuator Material :

Polyamide (PA46), Nylon 4/6

Contact Material :

COPPER ALLOY

Number of Positions :

2

Shell Size - Insert :

8-2

Mounting Feature :

Bulkhead - Front Side Nut

Cable Opening :

-

Mounting Type :

Panel Mount

Color :

Olive Drab

Package :

Bulk

Switch Function :

Off-Mom

Actuator Orientation :

Top Actuated

Product Status :

Active

Base Product Number :

KPT07

Actuator Type :

Plunger for Cap

Contact Rating @ Voltage :

0.05A @ 50VDC

Shell Material :

Aluminum Alloy

Applications :

Industrial, Military

Illumination Type, Color :

-

Switch Travel :

0.25mm

Termination :

Solder Cup

Mechanical Life :

-

Connector Type :

Receptacle, Male Pins

Features :

Backshell

Contact Finish Thickness - Mating :

50.0µin (1.27µm)

Ingress Protection :

IP67 - Dust Tight, Waterproof

Actuator Length, Right Angle :

-

Material Flammability Rating :

-

Shell Finish :

Olive Drab Chromate over Cadmium

Series :

KPT

Insert Material :

Polychloroprene

Primary Material :

Metal

Backshell Material, Plating :

-

Operating Temperature :

-55°C ~ 125°C

Outline :

6.00mm x 6.00mm

Actuator Height off PCB, Vertical :

7.00mm

Termination Style :

Gull wing

Voltage Rating :

600VAC, 850VDC

Fastening Type :

Bayonet Lock
