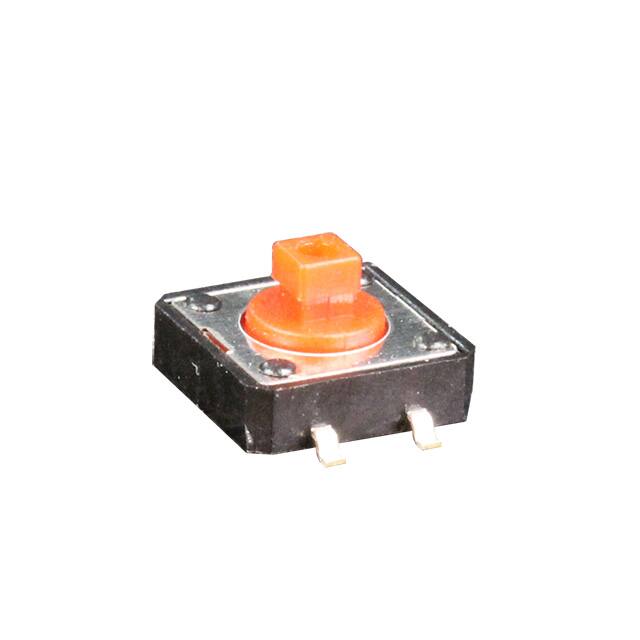

CS1103TF260R

Manufacturer :

CIT Relay and Switch

Product Category :

Actuator Height off PCB, Vertical :

7.50mm

Actuator Material :

Polyamide (PA6T), Nylon 6T

Switch Function :

Off-Mom

Actuator Orientation :

Top Actuated

Ingress Protection :

-

Mounting Type :

Surface Mount

Mechanical Life :

-

Actuator Length, Right Angle :

-

Product Status :

Active

Actuator Type :

Plunger for Cap

Operating Temperature :

-40°C ~ 85°C

Outline :

12.00mm x 12.00mm

Illumination :

Non-Illuminated

Switch Travel :

0.30mm

Illumination Voltage (Nominal) :

-

Contact Rating @ Voltage :

0.05A @ 48VDC

Operating Force :

260gf

Illumination Type, Color :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Circuit :

SPST-NO

Features :

-

Series :

CS1103

Termination Style :

Gull wing
