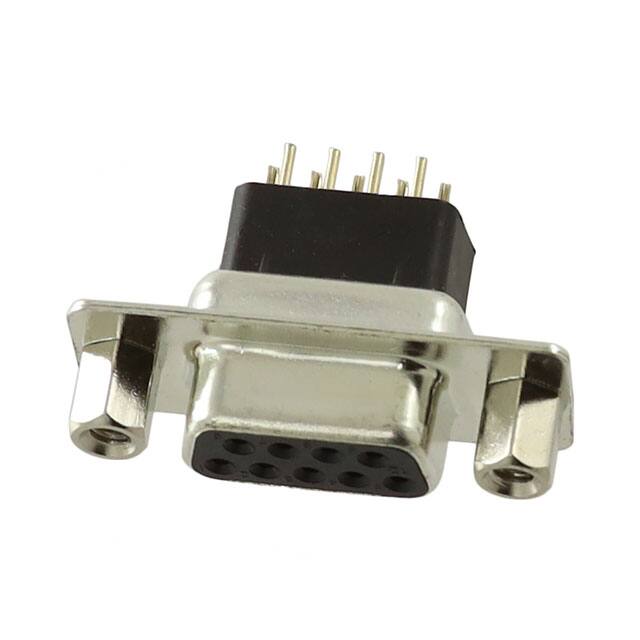

DE09-SE-1-JS
Or copy the link below:
- Mfr.Part #
- DE09-SE-1-JS
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 9POS VERT SLDR
- Stock
- 21,459
- In Stock ：
- 21,459
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated :
- 250VAC
- Number Of PCB Rows :
- 2
- Mounting Type :
- Through Hole
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Reference Standard :
- UL, CSA
- Contact Style :
- RND PIN-SKT
- Total Number of Contacts :
- 9
- Reliability :
- COMMERCIAL
- Contact Finish :
- Gold
- Factory Lead Time :
- 9 Weeks
- Contact Material :
- COPPER ALLOY
- Current Rating (Amps) :
- 3A
- Number of Positions :
- 9
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -65°C~125°C
- Insulation Resistance :
- 5000000000Ohm
- Number of Rows :
- 2
- Contact Finish Thickness :
- Flash
- Dielectric Withstanding Voltage :
- 1000VAC V
- Contact Pattern :
- STAGGERED
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Shell Material, Finish :
- Steel, Tin Plated
- Series :
- DSE
- Connector Style :
- D-Sub
- Packaging :
- Tray
- Color :
- Black
- Body Depth :
- 0.464 inch
- Mounting Option 2 :
- JACKSCREW
- Shell Size, Connector Layout :
- 1 DE E
- PCB Contact Pattern :
- STAGGERED
- Termination :
- Solder
- Connector Type :
- Receptacle, Female Sockets
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Datasheets
- DE09-SE-1-JS
DSE Series D-Sub Receptacle, Female Sockets 9-Position Solder 1 DE E Through Hole Copper Alloy Gold Steel, Tin Plated
DE09-SE-1-JS Overview
Packaging is Receptacle, Female Sockets.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the DSE Series.Devices operate at -65°C~125°C operating temperatures.
DE09-SE-1-JS Features
DSE series
DE09-SE-1-JS Applications
There are a lot of Adam Tech
DE09-SE-1-JS D-Sub Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
