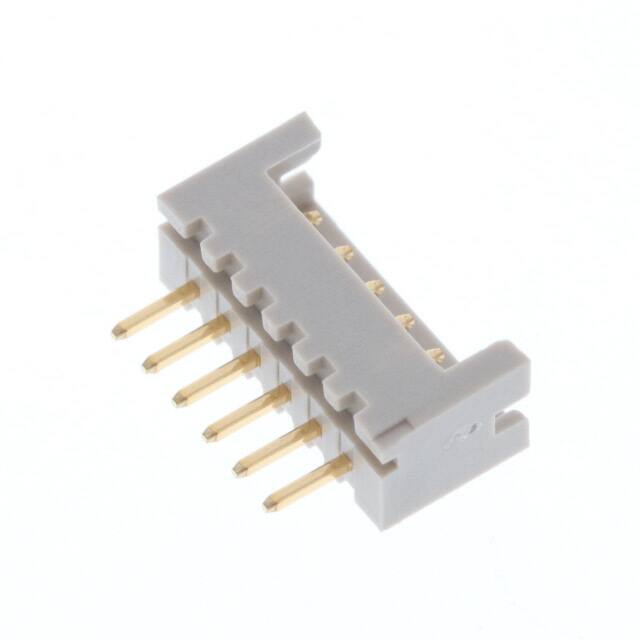

DF13-6P-1.25DSA(76)
Or copy the link below:
- Mfr.Part #
- DF13-6P-1.25DSA(76)
- Manufacturer
- Hirose
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 6POS 1.25MM
- Stock
- 7,490
- In Stock ：
- 7,490
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Hirose
- Product Category :
- Headers, Male Pins
- Operating Temperature :
- -35°C~85°C
- IEC Conformance :
- No
- Contact Finish Thickness - Post :
- 8.00μin 0.203μm
- Pitch - Mating :
- 0.049 1.25mm
- RoHS Status :
- RoHS Compliant
- Material Flammability Rating :
- UL94 V-0
- DIN Conformance :
- No
- Number of Rows :
- 1
- Number of Positions :
- 6
- Packaging :
- Tube
- Voltage - Rated :
- 150V
- MIL Conformance :
- No
- Factory Lead Time :
- 10 Weeks
- Style :
- Board to Cable/Wire
- Mixed Contacts :
- No
- Insulation Height :
- 0.169 4.30mm
- Current Rating (Amps) :
- 1A
- Insulation Material :
- Polyamide (PA), Nylon
- Contact Shape :
- Square
- Contact Material :
- Brass
- Insulation Color :
- Beige
- Contact Finish Thickness - Mating :
- 8.00μin 0.203μm
- Mounting Type :
- Through Hole
- Contact Type :
- Male Pin
- Contact Length - Post :
- 0.091 2.30mm
- Connector Type :
- Header
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Shrouding :
- Shrouded - 4 Wall
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Filter Feature :
- No
- Additional Feature :
- POLARIZED
- Contact Finish - Mating :
- Gold
- Termination :
- Solder
- Number of Positions Loaded :
- All
- UL Flammability Code :
- 94V-0
- Option :
- GENERAL PURPOSE
- Fastening Type :
- Detent Lock
- Series :
- DF13
- Datasheets
- DF13-6P-1.25DSA(76)
DF13 Series 1-Row Header Solder Brass Tube Through Hole Gold Polyamide (PA), Nylon 6-Position Board to Cable/Wire 0.169 4.30mm Height
DF13-6P-1.25DSA(76) Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Tube case is used to package the product.A product of the DF13 Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as POLARIZED, to name a few.-35°C~85°C Operating Temperature is the default operating temperature for the device.
DF13-6P-1.25DSA(76) Features
DF13 series
DF13-6P-1.25DSA(76) Applications
There are a lot of Hirose Electric Co Ltd
DF13-6P-1.25DSA(76) Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
