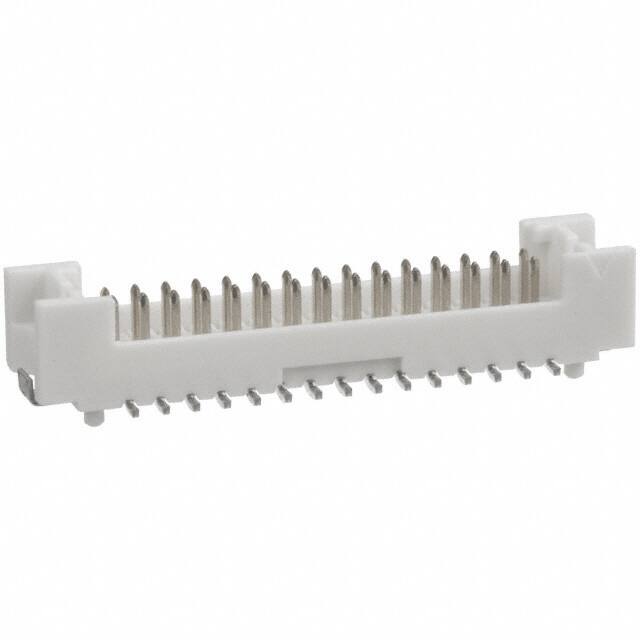

DF13EA-30DP-1.25V(22)

Manufacturer :

Hirose

Product Category :

Headers, Male Pins

Style :

Board to Cable/Wire

Minimum Operating Temperature :

- 35 C

Insulation Resistance :

500 MOhms

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Overall Contact Length :

-

Mated Stacking Heights :

-

Contact Length - Post :

-

Flammability Rating :

UL94 V-0

Connector Type :

Header

Termination Style :

Crimp

Contact Plating :

Tin

Termination :

Solder

Housing Color :

Beige

Type :

Pin Header

Mounting Style :

SMD/SMT

Contact Finish Thickness - Mating :

39.4µin (1.00µm)

Insulation Color :

Beige

Product :

Headers

Material Flammability Rating :

UL94 V-0

Contact Finish - Mating :

Tin

Fastening Type :

Detent Lock

Mounting Type :

Surface Mount

Series :

DF13

Product Type :

Headers and Wire Housings

Number of Positions Loaded :

All

Mounting Angle :

Straight

Applications :

-

Maximum Operating Temperature :

+ 85 C

Number of Positions :

30

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Current Rating (Amps) :

1A per Contact

Product Status :

Active

Subcategory :

Headers and Wire Housings

Number of Rows :

2

Pitch - Mating :

0.049 (1.25mm)

Contact Material :

Brass

Contact Type :

Male Pin

Housing Gender :

Male

Insulation Material :

Polyamide (PA), Nylon

Pitch :

1.25 mm

Features :

Solder Retention

Contact Gender :

Pin (Male)

Ingress Protection :

-

Contact Finish - Post :

Tin

Row Spacing - Mating :

0.049 (1.25mm)

Shrouding :

Shrouded - 4 Wall

Insulation Height :

0.189 (4.80mm)

Operating Temperature :

-35°C ~ 85°C

Contact Length - Mating :

0.094 (2.40mm)

Contact Shape :

Square

Voltage Rating :

150VAC/DC
