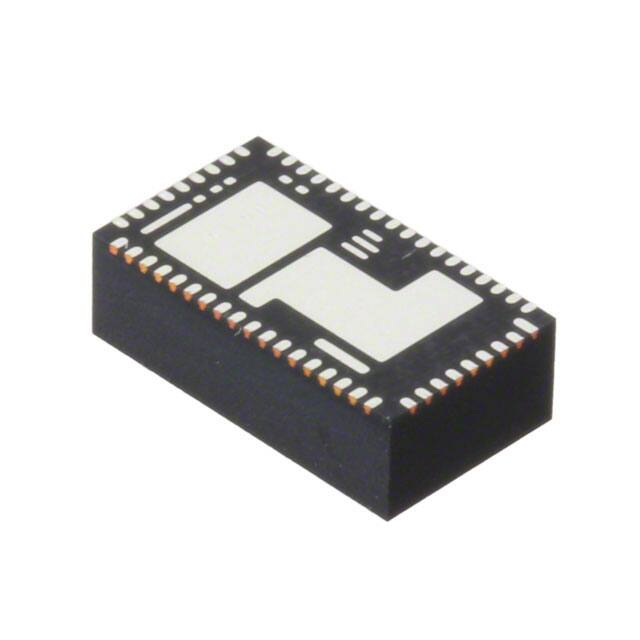

EV1340QI

Manufacturer :

Altera (Intel)

Product Category :

Mount :

Surface Mount

Switching Frequency :

1.5 MHz

Schedule B :

8542310000

Operating Temperature :

-40°C ~ 85°C

Weight :

500.000539 mg

Width :

5.588 mm

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Length :

9.906 mm

Min Supply Voltage :

2.9 V

Max Operating Temperature :

85 °C

Terminal Form :

NO LEAD

Control Technique :

PULSE WIDTH MODULATION

Efficiency :

91%

Manufacturer :

Intel Corporation

Number of Terminals :

54

Package / Case :

54-PowerBFQFN Module

Number of Outputs :

1

Series :

Enpirion®

Switcher Configuration :

Buck

Switching Frequency-Max :

1500 kHz

HTS Code :

8542.39.00.01

Output Current :

5 A

Reach Compliance Code :

Compliant

Control Features :

Enable, Active High

Number of Pins :

54

Applications :

ITE (Commercial)

Terminal Position :

QUAD

Additional Feature :

ALSO REQUIRED SUPPLY VOLT OF 1V TO 1.8V WHICH IS TRACKED BY THE OUTPUT VOLTAGE

Moisture Sensitivity Level (MSL) :

--

Max Output Current :

5 A

REACH SVHC :

No SVHC

Subcategory :

Switching Regulator or Controllers

Seated Height-Max :

3.05 mm

Min Output Voltage :

500 mV

Voltage - Input (Min) :

1V

Current - Output (Max) :

5A

Temperature Grade :

Industrial

Packaging :

Tape and Reel (TR)

RoHS :

Compliant

Size / Dimension :

0.39 L x 0.22 W x 0.12 H (10.0mm x 5.5mm x 3.0mm)

Terminal Pitch :

0.5 mm

ECCN Code :

EAR99

Max Input Voltage :

1.8 V

Voltage - Output 2 :

--

Qualification Status :

Not Qualified

Max Power Dissipation :

5 W

Radiation Hardening :

No

Package Shape :

RECTANGULAR

Type :

Non-Isolated PoL Module

Voltage - Output 3 :

--

Input Voltage-Nom :

3.3 V

Min Input Voltage :

1 V

Supplier Device Package :

54-QFN (10x5.5)

Output Current-Max :

5 A

Max Output Voltage :

900 mV

Features :

Remote On/Off, OCP, OTP, SCP, UVLO

JESD-30 Code :

R-XQCC-N54

Height :

3.048 mm

Surface Mount :

yes

Voltage - Output 1 :

0.5 ~ 0.9 V

Min Operating Temperature :

-40 °C

Number of Functions :

1

Analog IC - Other Type :

SWITCHING REGULATOR

Control Mode :

VOLTAGE-MODE

Mounting Type :

Surface Mount

Output Voltage :

760 mV

Voltage - Input (Max) :

1.8V
