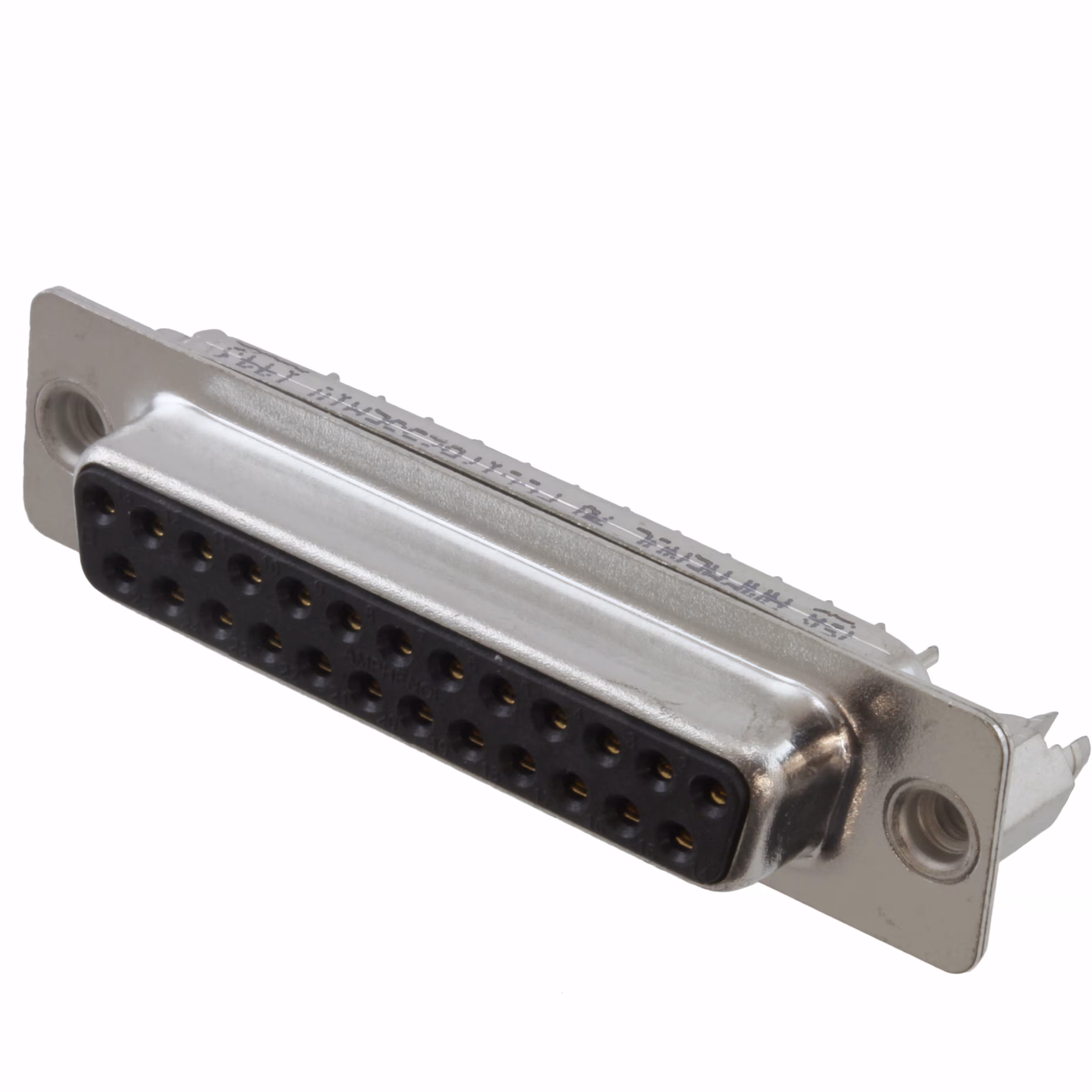

FCC17-B25SE-A10

Manufacturer :

Amphenol Communications Solutions

Product Category :

D-Sub Connector Assemblies

Rated Current (Signal) :

5 A

Features :

Filter

PCB Contact Pattern :

STAGGERED

Current Rating (Amps) :

5A

Mounting Option 1 :

HOLE .115-.125

Contact Resistance :

15 mΩ

Mounting Option 2 :

Standoff

Shell Size, Connector Layout :

3 (DB, B)

Termination Type :

Solder

Reach Compliance Code :

Unknown

Insulation Resistance :

3000000000 Ω

Reference Standard :

UL, CSA

Contact Finish :

Gold

Reliability :

COMMERCIAL

Shell Material :

Steel

Number of Rows :

2

Number of Positions :

25

Contact Form :

Machined

Mounting Style :

Straight

Dielectric Material :

Thermoplastic

Mating Contact Pitch :

0.108 inch

Mating Contact Row Spacing :

0.112 inch

Mounting Type :

BOARD

Filter Feature :

yes

Shell Material, Finish :

Steel, Tin Plated

Connector Style :

D-Sub

JESD-609 Code :

e0

Plating Thickness :

15u inch

Series :

FCC17

Ingress Protection :

-

Operating Temperature :

-40°C ~ 85°C

Product Status :

Obsolete

Contact Gender :

FEMALE

Color :

Black

Body Depth :

0.25 inch

Number Of PCB Rows :

2

PCB Contact Row Spacing :

2.8448 mm

Termination :

Solder

Contact Pattern :

STAGGERED

Base Product Number :

FCC17B25

Body Breadth :

0.494 inch

Wire Gauge :

-

Contact Material :

Phosphor Bronze

Dielectric Withstanding Voltage :

600VAC V

Contact Finish Thickness :

15.0μin (0.38μm)

Contact Style :

RND PIN-SKT

Flange Feature :

Board Side (4-40)

Shell Finish :

Tin

Voltage Rating :

200V

Backset Spacing :

-

Package :

Bulk

Material Flammability Rating :

UL94 V-0

Body/Shell Style :

PLUG

Total Number of Contacts :

25

Terminal Pitch :

2.7432 mm

Contact Type :

Signal

Terminal Length :

0.15 inch

Contact Finish Termination :

Tin/Lead (Sn/Pb)

Connector Type :

Receptacle, Female Sockets
