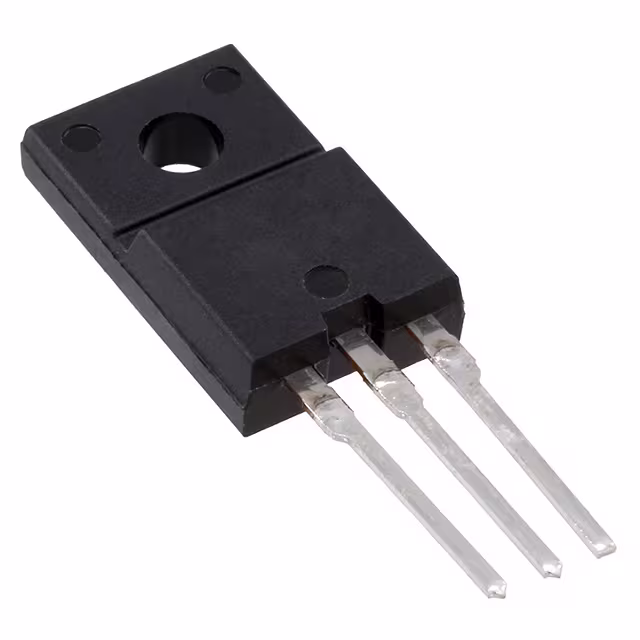

FKP202

Manufacturer :

Sanken Electric Co., Ltd.

Product Category :

Transistors - FETs, MOSFETs - Single

Drain-source On Resistance-Max :

0.053Ohm

Vgs(th) (Max) @ Id :

4.5V @ 1mA

Power Dissipation-Max (Abs) :

40 W

Rds On (Max) @ Id, Vgs :

53m Ω @ 22A, 10V

Power Dissipation-Max :

40W Tc

Drive Voltage (Max Rds On,Min Rds On) :

10V

Product Status :

Active

Terminal Form :

THROUGH-HOLE

Power Dissipation (Max) :

40W (Tc)

Number of Terminals :

3

Published :

2007

Configuration :

Single

Transistor Application :

SWITCHING

Operating Mode :

ENHANCEMENT MODE

Package Shape :

RECTANGULAR

Factory Lead Time :

12 Weeks

Manufacturer :

Allegro MicroSystems LLC

Polarity/Channel Type :

N-Channel

Number of Elements :

1

DS Breakdown Voltage-Min :

250V

ECCN Code :

EAR99

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Continuous Drain Current (ID) :

45A

HTS Code :

8541.29.00.95

Pbfree Code :

yes

Case Connection :

Isolated

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Lead Free :

Lead Free

Operating Temperature :

150°C TJ

Mount :

Through Hole

Number of Terminations :

3

Package / Case :

TO-220-3 Full Pack

Input Capacitance (Ciss) (Max) @ Vds :

2000pF @ 25V

Avalanche Energy Rating (Eas) :

200 mJ

Mounting Type :

Through Hole

Pulsed Drain Current-Max (IDM) :

180A

Terminal Position :

Single

FET Feature :

-

Supplier Device Package :

TO-220

Transistor Element Material :

SILICON

Package :

Bulk

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Subcategory :

FET General Purpose Power

RoHS Status :

RoHS Compliant

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Series :

-

Packaging :

Bulk

Drain Current-Max (Abs) (ID) :

45 A

FET Type :

N-Channel

Surface Mount :

No

JESD-30 Code :

R-PSFM-T3

Reach Compliance Code :

Compliant

Pin Count :

3

Vgs (Max) :

±30V

Drain to Source Voltage (Vdss) :

200V

JEDEC-95 Code :

TO-220AB

Current - Continuous Drain (Id) @ 25°C :

45A Ta

Qualification Status :

Not Qualified
