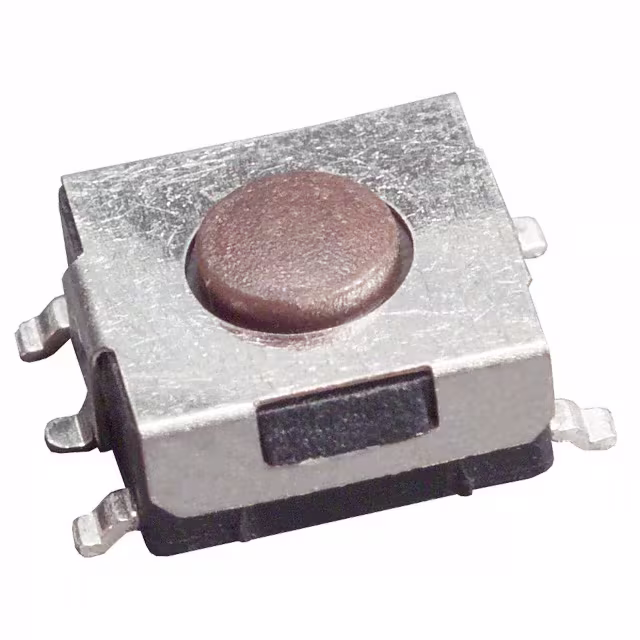

FSM1LPATR

Manufacturer :

TE Connectivity ALCOSWITCH Switches

Product Category :

Mounting Type :

Surface Mount

Reach Compliance Code :

Compliant

Width :

5.99 mm

Current Rating (Max) :

0.05(A)

Pbfree Code :

yes

Housing Material :

Cu Alloy

Electrical Life :

100000 Cycle(s)

Mounting Feature :

SURFACE MOUNT-STRAIGHT

Contact Material :

COPPER ALLOY

Body Orientation :

Straight

Center Contact Material :

COPPER ALLOY

Actuator Type :

Standard

Body Height :

2.59 mm

Contact Resistance :

0.1 mΩ

Insulation Resistance :

100000000 Ω

Actuator Style :

Round Button

Termination Type :

Solder

Contact Form :

SPST

Packing Method :

Tape and Reel

Ingress Protection :

--

Actuator Material :

Polyphenylene Sulfide (PPS)

Product Type :

Tactile Switches

Product Length (mm) :

6.19(mm)

Additional Feature :

LOW PROFILE

IP Rating :

-

Actuator Length (mm) :

0.27(mm)

Body Color :

Black

Current Rating :

50 mA

Product Category :

Tactile Switches

Actuator Length :

0.02 inch

Product Height (mm) :

3.09(mm)

Terminal Material :

COPPER ALLOY

Series :

FSM1LP

Outline :

6.00mm x 6.00mm

Features :

--

Brand :

TE Connectivity / PandB

Switch Function :

Off-Mom

ECCN Code :

EAR99

Switch Function Configuration :

OFF ON

Type :

LOW PROFILE

Packaging :

Tape and Reel

Contact Plating :

Silver

Contact Rating @ Voltage :

0.05A @ 24VDC

Subcategory :

Switches

Contact Function :

OFF-(ON)

Body Length or Diameter :

6.2 mm

Package :

Tape and Reel (TR);Cut Tape (CT);

Operating Temperature :

-35°C ~ 85°C

Mounting Style :

Surface Mount

Illumination :

Non-Illuminated

Actuator Travel :

0.254 mm

HTS Code :

8536.50.90.31

Illumination Color :

-

Base Product Number :

FSM1

Lamp Type :

-

Center Contact Plating :

Silver

Actuator :

Round

Color :

Brown

Operating Force-Max :

3.04 N

Illumination Voltage (Nominal) :

--

Product Status :

Active

Contact Current(DC)-Max :

0.05 A

Terminal Type :

Gull wing

Manufacturer :

TE Connectivity

Power Rating :

-

Operating Temp Range :

-20C to 85C

Actuator Color :

Brown

Body Breadth :

5.99 mm

Circuit :

SPST-NO

Voltage Rating (VDC) :

24(V)

Actuator Length, Right Angle :

--

Height :

3.1 mm

Actuator Orientation :

Top Actuated

Termination Style :

Gull wing

Illumination Type :

Not Required

Switch Action :

MOMENTARY-TACTILE

Pole Throw Configuration :

SPST

Switch Travel :

0.25mm

End Contact Plating :

Silver

Switch Type :

PUSHBUTTON SWITCH

Actuator Height off PCB, Vertical :

3.10mm

RoHS :

Details

Product Depth (mm) :

8(mm)

End Contact Material :

COPPER ALLOY

Terminal Finish :

Silver (Ag)

Illumination Type, Color :

--

Length :

5.99 mm

Brand Name :

Alcoswitch

Operating Force :

2.55(N)

Contact Voltage(DC)-Max :

24 V

Contact Current(AC)-Max :

0.05 A

Surface Mount :

No

JESD-609 Code :

e4

Mechanical Life :

100,000 Cycles

Seal :

No
