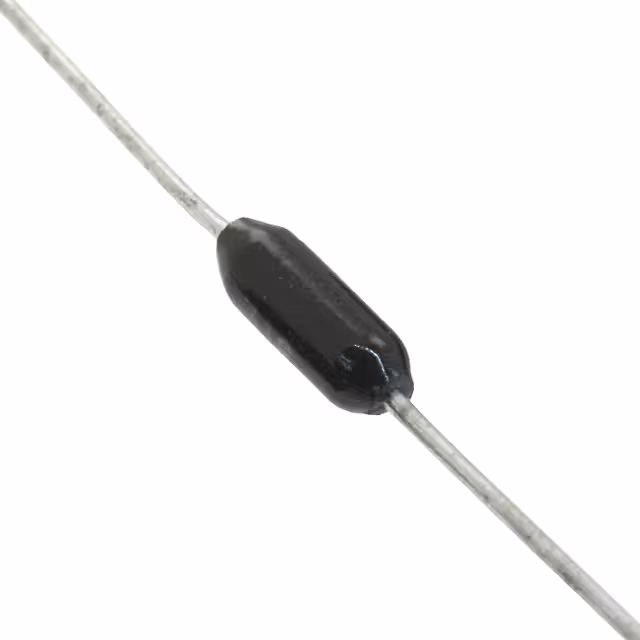

H83K09BDA

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Manufacturer :

Square D

Operating Temperature :

-55°C ~ 155°C

Rated Power Dissipation (P) :

0.25 W

Resistor Type :

FIXED RESISTOR

Terminal Shape :

Wire

Failure Rate :

--

RoHS :

yes

Product Category :

Metal Film Resistors - Through Hole

Phase :

1

Power Rating :

250 mW (1/4 W)

Features :

Pulse Withstanding

Supplier Device Package :

Axial

VA Rating :

300 VA

Base Product Number :

H8

Maximum Operating Temperature :

+ 155 C

Approvals :

CSA, UL

Surface Mount :

No

Lead Length :

30 mm

Temperature Coefficient :

±25ppm/°C

Termination Style :

Axial

Rated Temperature :

70 °C

Tolerance :

±0.1%

Construction :

Tubular

ECCN Code :

EAR99

Brand :

TE Connectivity / Holsworthy

Package / Case :

Axial

Composition :

Metal Film

Package :

Bulk

Package Length :

7.2 mm

Lead Diameter :

0.6 mm

Height - Seated (Max) :

--

Minimum Operating Temperature :

- 55 C

Additional Feature :

PRECISION

Series :

Holco, Holsworthy

Power (Watts) :

0.25W, 1/4W

Product Type :

Metal Film Resistors

Type :

Control

Diameter :

2.5 mm

Packing Method :

Tape

Product Status :

Active

Mounting Feature :

THROUGH HOLE MOUNT

Packaging :

Bulk

Technology :

Metal Film

Mounting Style :

PCB Mount

Working Voltage :

350 V

Number of Terminals :

2

Reach Compliance Code :

Compliant

Length :

7.2 mm

Subcategory :

Resistors

Number of Terminations :

2

Resistance :

3.09 kOhms

Package Shape :

TUBULAR PACKAGE

Size / Dimension :

0.098 Dia x 0.283 L (2.50mm x 7.20mm)
