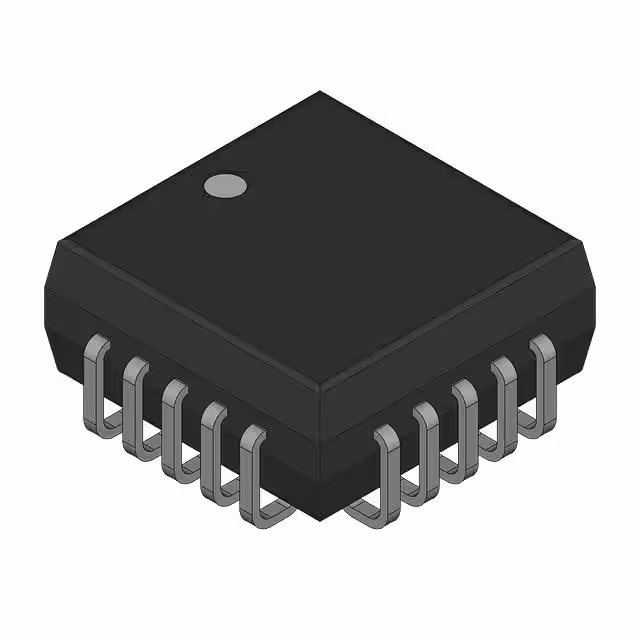

HI4P0508-5

Manufacturer :

Harris Corporation

Product Category :

Analog Switches, Multiplexers, Demultiplexers

Surface Mount :

yes

HTS Code :

8542.39.00.01

Terminal Finish :

TIN LEAD

Voltage - Supply, Dual (V±) :

44V

Pbfree Code :

No

Switch-on Time-Max :

1000 ns

JESD-609 Code :

e0

Seated Height-Max :

4.57 mm

Analog IC - Other Type :

SINGLE-ENDED MULTIPLEXER

Operating Temperature :

0°C ~ 75°C

Multiplexer/Demultiplexer Circuit :

8:1

Mounting Type :

Surface Mount

Terminal Pitch :

1.27 mm

Number of Terminals :

20

Width :

8.965 mm

Terminal Form :

J BEND

Neg Supply Voltage-Nom (Vsup) :

-15 V

On-State Resistance (Max) :

400Ohm

Package / Case :

20-LCC (J-Lead)

Channel Capacitance (CS(off), CD(off)) :

10pF, 17pF

Product Status :

Active

Switch-off Time-Max :

1000 ns

Terminal Position :

QUAD

Pin Count :

20

Supply Voltage-Min (Vsup) :

10 V

Technology :

CMOS

Reach Compliance Code :

Unknown

Current - Leakage (IS(off)) (Max) :

30pA

Crosstalk :

-

Peak Reflow Temperature (Cel) :

225

Number of Circuits :

1

Voltage - Supply, Single (V+) :

44V

Package Shape :

Square

Number of Channels :

8

Switch Time (Ton, Toff) (Max) :

250ns (Typ), 250ns (Typ)

Length :

8.965 mm

Off-state Isolation-Nom :

68 dB

-3db Bandwidth :

-

Package :

Bulk

JESD-30 Code :

S-PQCC-J20

Number of Functions :

1

Switch Circuit :

SP8T

Series :

-

On-state Resistance Match-Nom :

9 Ω

Manufacturer :

Rochester Electronics LLC

Temperature Grade :

COMMERCIAL EXTENDED

Neg Supply Voltage-Min (Vsup) :

-10 V

Supplier Device Package :

20-PLCC (9x9)

Charge Injection :

-
