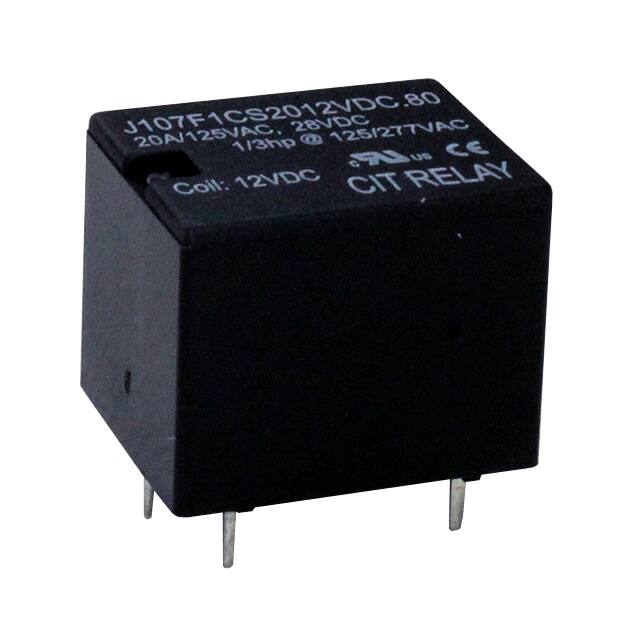

J107F1CS2012VDC.80
Or copy the link below:
- Mfr.Part #
- J107F1CS2012VDC.80
- Manufacturer
- CIT Relay and Switch
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE SPDT 20A 12V
- Stock
- 962
- In Stock ：
- 962
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CIT Relay and Switch
- Product Category :
- Power Relays, Over 2 Amps
- Relay Function :
- SPDT
- Contact Current(AC)-Max :
- 20 A
- Contact Voltage(DC)-Max :
- 16 V
- Contact Form :
- SPDT (1 Form C)
- Coil Power :
- 800 mW
- Physical Dimension :
- 19mm x 15.5mm x 15.3mm
- Features :
- -
- Body Length or Diameter :
- 19 mm
- Package :
- Tube
- Terminal Length :
- 0.004 inch
- Coil Type :
- Non Latching
- Coil Voltage :
- 12VDC
- Base Product Number :
- J107F1CS
- Contact Material :
- Silver Tin Oxide (AgSnO)
- Weight :
- 9.5 g
- Body Breadth :
- 15.5 mm
- Contact Voltage(AC)-Max :
- 125 V
- Coil Current :
- 66.7 mA
- Contact Resistance :
- 50 mΩ
- Reach Compliance Code :
- Compliant
- Operating Temperature :
- -55°C ~ 125°C
- Release Time :
- 5 ms
- Coil Resistance :
- 180 Ohms
- Body Height :
- 15.3 mm
- Must Release Voltage :
- 1.2 VDC
- Must Operate Voltage :
- 9 VDC
- Contact Current(DC)-Max :
- 20 A
- Termination Style :
- PC Pin
- Coil Insulation :
- Class F
- Series :
- J107F
- Manufacturer :
- Miscellaneous
- Contact Rating (Current) :
- 20 A
- Mounting Type :
- Through Hole
- Electrical Life :
- 100000 Cycle(s)
- Seal Rating :
- Sealed - Fully
- Relay Type :
- GENERAL PURPOSE
- Operate Time :
- 10 ms
- Switching Voltage :
- 380VAC, 110VDC - Max
- Product Status :
- Active
- Datasheets
- J107F1CS2012VDC.80
