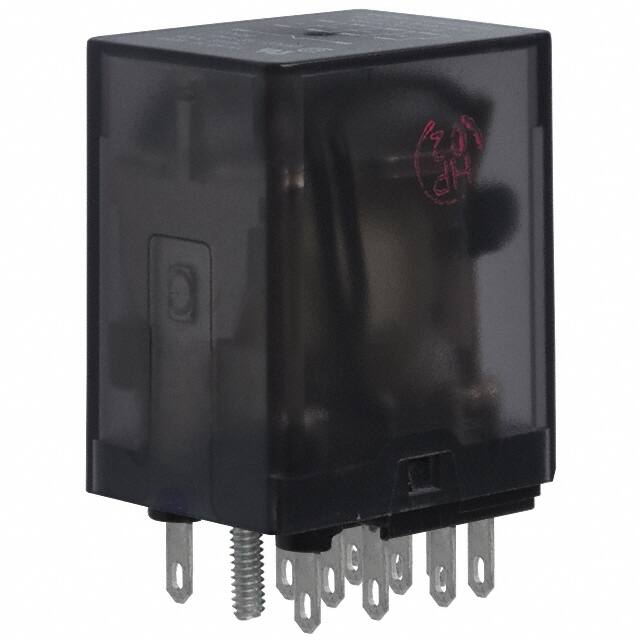

KHAU-17D11-24

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Power Relays, Over 2 Amps

Contact Voltage(AC)-Max :

120 V

Package :

Tray

Features :

Insulation - Class B

Depth :

21.8mm

Body Breadth :

21.8 mm

Termination Style :

Solder Lug

Must Release Voltage :

-

Operating Temperature :

-45°C ~ 70°C

Pin Count :

14

Series :

KHA

Contact Voltage(DC)-Max :

28 V

Coil Suppression Diode :

No

Switching Current :

3A

Terminal Length :

0.008 inch

Contact Rating (Current) :

3A

Rad Hardened :

No

Type :

Standard

Contact/Output Supply Type :

AC/DC

Contact Material :

Silver

RoHS :

Details

Product Length :

21.82 mm

Voltage Rating (VDC) :

28(V)

Coil Current :

34.78(mA)

Relay Form :

4 Form C

Coil Power :

900 mW

Product Length (mm) :

21.82(mm)

Coil Voltage :

24VDC

Relay Function :

4PDT

Body Height :

34.9 mm

Factory Lead Time :

14 Weeks

Must Operate Voltage :

18 VDC

Sealing :

DUST PROOF

Contact Current(DC)-Max :

3 A

Input Switching Control Type :

Random

Contact Form :

4 Form C

Contact Configuration :

4PDT

Coil Current(DC)-Max :

0.038 A

Relay Action :

Momentary

Height :

32.5mm

Product :

Power Relays

Reach Compliance Code :

not_compliant

Operating Temp Range :

-45C to 70C

Surface Mount :

No

Physical Dimension :

28.2mm x 21.8mm x 34.9mm

Width :

21.82 mm

Product Category :

General Purpose Relays

Coil/Input Supply Type :

DC

Electrical Life :

100000 Cycle(s)

Dielectric Strength Between Coil and Contacts :

1500 Vrms

LED Indicator :

No

Termination Type :

Snap-On

End Contact Material :

Silver

Power Consumption :

850 mW

Number of Poles :

4

Contact Resistance :

100 mΩ

Supplier Package :

Dust Cover

Coil Type :

Non Latching

Body Length or Diameter :

28.2 mm

Product Type :

General Purpose Relays

Mounting Feature :

SOCKET MOUNT

Mounting Type :

Socketable

Product Depth (mm) :

28.17(mm)

Relay Construction :

Non-Latching

Coil Operate Voltage(DC) :

18 V

Coil Voltage(DC)-Max :

24 V

Contact Current(AC)-Max :

3 A

Coil Insulation :

Class B

Operate Time :

13 ms

Product Status :

Active

Contact Current Rating :

5(A)

Maximum Power Rating :

0.1HP

Reference Standard :

CSA; UL

Terminal Type :

PCB Pin

Weight :

45 g

Turn Off Voltage (Min) :

--

Voltage Rating (VAC) :

120(V)

Release Time :

6 ms

Subcategory :

Relays

Number of Terminals :

8

Relay Type :

POWER/SIGNAL RELAY

Length :

28.2mm

Coil Resistance :

650 Ω

Contact Arrangement :

4PDT

Switching Voltage :

240VAC - Max

Pick-up Voltage (Max) :

18VDC

Turn On Voltage (Max) :

18 VDC

Seal :

Unsealed

Insulation Resistance :

100000000 Ω

Contact Termination :

Solder Lug

Package / Case :

Dust Cover

Brand :

TE Connectivity

Packaging :

Box or Tray

Application :

GENERAL PURPOSE

ECCN Code :

EAR99

Base Product Number :

KHAU

Mounting Style :

Socket

Dielectric Strength Between Open Contacts :

1000 Vrms

Seal Rating :

-

Coil Voltage DC :

24
