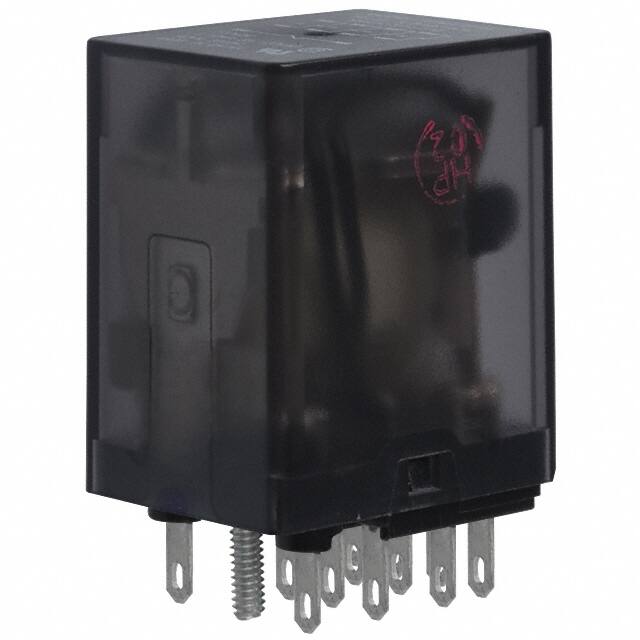

KHAU-17D16-24

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Signal Relays, Up to 2 Amps

Contact Voltage(AC)-Max :

120 V

Seal :

Unsealed

Pin Count :

14

Pick-up Voltage (Max) :

18VDC

Brand :

TE Connectivity

Relay Construction :

Non-Latching

RoHS :

Details

Termination Type :

Solder

Factory Lead Time :

24 Weeks

Coil Voltage(DC)-Max :

24 V

LED Indicator :

No

Length :

28.17 mm

Physical Dimension :

28.17mm x 21.82mm x 32.54mm

Product Type :

General Purpose Relays

Product Status :

Active

Weight :

45 g

Contact Resistance :

200 mΩ

Width :

21.82 mm

Voltage Rating (VDC) :

30(V)

Coil Voltage :

24VDC

Relay Form :

4 Form C

Release Time :

6 ms

ECCN Code :

EAR99

End Contact Material :

Silver

Terminal Length :

0.008 inch

Reach Compliance Code :

Compliant

End Contact Plating :

Gold

Contact Current(AC)-Max :

1 A

Input Switching Control Type :

Random

Coil Type :

Non Latching

Relay Function :

4PDT

Product Depth (mm) :

28.17(mm)

Product :

Power Relays

Contact Termination :

Solder Lug

Coil Current :

34.78(mA)

Mounting Feature :

Panel Mount

Surface Mount :

No

Switching Voltage :

240VAC - Max

Coil Resistance :

650 Ω

Contact Form :

4 Form C

Relay Type :

POWER/SIGNAL RELAY

Package / Case :

Dust Cover

Contact Arrangement :

4PDT

Supplier Package :

Dust Cover

Mounting Type :

Socketable

Sealing :

DUST PROOF

Mounting :

SOCKET MOUNT

Contact Rating (Current) :

1 A

Termination Style :

Solder Lug

Coil Voltage DC :

24

Contact Current(DC)-Max :

1 A

Product Length :

21.82 mm

Electrical Life :

10000000 Cycle(s)

Operating Temp Range :

-45C to 70C

Series :

KHA

Base Product Number :

KHAU

Package :

Tray

Dielectric Strength Between Open Contacts :

1000 Vrms

Product Category :

General Purpose Relays

Contact Material :

GOLD/SILVER

Mounting Style :

Socket

Contact Voltage(DC)-Max :

28 V

Operating Temperature :

-45 to 70 °C

Coil Suppression Diode :

No

Relay Action :

Momentary

Coil Power :

900 mW

Turn Off Voltage (Min) :

--

Seal Rating :

-

Coil Insulation :

Class B

Coil/Input Supply Type :

DC

Coil Operate Voltage(DC) :

18 V

Features :

-

Body Length or Diameter :

28.17 mm

Rad Hardened :

No

Subcategory :

Relays

Height :

32.54 mm

Insulation Resistance :

100000000 Ω

Type :

Standard

Coil Current(DC)-Max :

0.037 A

Power Consumption :

850 mW

Packaging :

Tray

HTS Code :

8536.41.00.20

Contact Current Rating :

1(A)

Must Release Voltage :

-

Body Breadth :

21.82 mm

Maximum Power Rating :

0.1HP

Must Operate Voltage :

18 VDC

Voltage Rating (VAC) :

120(V)

Reference Standard :

CSA; UL

Body Height :

32.54 mm

Number of Terminals :

8

Operate Time :

13 ms

Dielectric Strength Between Coil and Contacts :

1500 Vrms

Product Length (mm) :

21.82(mm)

Turn On Voltage (Max) :

18 VDC
