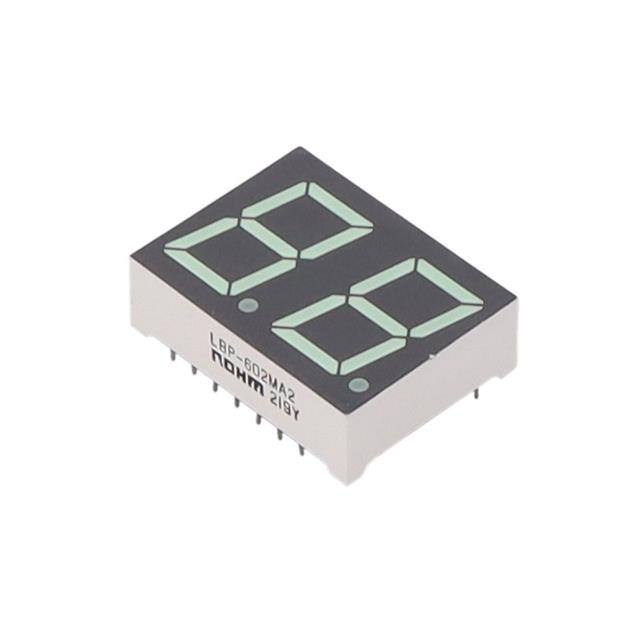

LBP-602MA2

Manufacturer :

ROHM Semiconductor

Product Category :

Configuration :

Common Anode

Package :

Bulk

Size / Dimension :

0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm)

Forward Current :

20(mA)

Reverse Current :

100(uA)

Number of Characters :

2

HTS Code :

8541.40.20.00

Number of Segments :

7

Forward Voltage :

2.8(V)

Character Displayed :

Numeric

Package Type :

DIP Module

Number of Functions :

2

Current - Test :

10mA

Rad Hardened :

No

Product Type :

LED Displays

Base Product Number :

LBP-602

Reverse Voltage :

5(V)

Character Width :

8mm

Luminous Intensity :

100000UCD

Forward Voltage-Max :

2.8 V

Character Size :

14.3 mm

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Display Height :

14.3 mm

Viewing Area Height (mm) :

14.3(mm)

Pin Count :

18

Optoelectronic Device Type :

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

RoHS :

Details

Lifecycle Status :

Production (Last Updated: 2 years ago)

Maximum Operating Temperature :

+75°C

Illumination Color :

Green

Digit Size (in) :

0.56(in)

Viewing Area Length (mm) :

8(mm)

Mounting Type :

Through Hole

For Use With :

General Electronic Equipments

Brand :

Rohm Semiconductor

Manufacturer :

Rohm Semiconductor

Millicandela Rating :

100mcd

Power Dissipation :

896(W)

Digit/Alpha Size :

0.56" (14.30mm)

Maximum Forward Current :

20(mA)

Subcategory :

Displays

Dominant Wavelength :

572 nm

Mounting :

Through Hole

Mounting Style :

Through Hole

Operating Temperature Classification :

COMMERCIAL

Product Category :

LED Displays and Accessories

Power Dissipation (Max) :

896mW

Type :

Panel

Character Height :

14.3mm

Forward Current-Max :

0.02 A

Wavelength :

572 nm

Operating Temperature Range :

-25 → +75°C

JESD-609 Code :

e1

Reach Compliance Code :

Compliant

Series :

A2

Emitting Color :

Green

Package / Case :

18-DIP (0.600", 15.24mm)

Packaging :

Film

Total Thickness :

8(mm)

Color :

Green

Display Type :

7-Segment

Product Length (mm) :

25(mm)

Wavelength - Peak :

572nm

Product :

LED Displays

Peak Wavelength :

572(nm)

Product Status :

Active

Minimum Operating Temperature :

-25°C

Common Pin :

Common Anode

Product Depth (mm) :

19(mm)

Test Current (It) :

10(mA)

Vf - Forward Voltage :

1.9 V

Product Height (mm) :

8(mm)

Number of Elements :

16

Voltage - Forward (Vf) (Typ) :

1.9V
