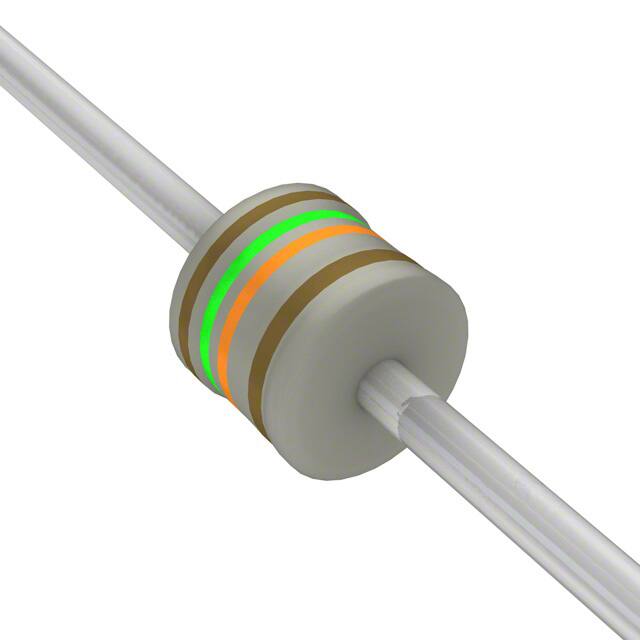

LR0204F15K

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Flame-Proof Support :

No

Qualification :

-

Length :

3.5 mm

Factory Lead Time :

15 Weeks, 6 Days

Failure Rate :

Not Required

Package Shape :

TUBULAR PACKAGE

Operating Temp Range :

-55C to 155C

Number of Terminations :

2

Working Voltage :

200 V

Product Width :

-

Minimum Operating Temperature :

- 55 C

Power Rating(s) :

0.25 (1/4)(W)

Size / Dimension :

0.079 Dia x 0.138 L (2.00mm x 3.50mm)

Mounting Style :

PCB Mount

Package / Case :

Axial

Lead Spacing (nom) :

Not Required(mm)

Case Style :

Conformal Coated

Power Rating :

0.25 W

JESD-609 Code :

e3

Rated Power Dissipation (P) :

0.25 W

Terminal Shape :

Wire

Product Depth (mm) :

Not Required(mm)

Resistor Type :

FIXED RESISTOR

Rated Temperature :

70 °C

Military Standard :

Not Required

Supplier Device Package :

Axial

Package Length :

3.5 mm

Resistance :

15000 Ω

Diameter :

2 mm

Mounting Feature :

THROUGH HOLE MOUNT

Temperature Coefficient :

100 ppm/°C

Resistance Tolerance :

1

Product Status :

Active

Features :

--

Product Length :

3.2 mm

Temperature Range @ Derated Power :

70 to 125

Lead Diameter :

0.45 mm

Product Height (mm) :

Not Required(mm)

Package :

Tape and Box (TB)

Product Length (mm) :

3.2(mm)

ECCN Code :

EAR99

Product Category :

Metal Film Resistors - Through Hole

Power (Watts) :

0.25W, 1/4W

Brand :

TE Connectivity / Holsworthy

Product Type :

Metal Film Resistors

Packing Method :

Ammo Pack

Terminal Finish :

Tin (Sn)

Type :

Metal Film

Construction :

Tubular

Base Product Number :

LR0204

Voltage Rating :

200V

Composition :

Metal Film

Reach Compliance Code :

Compliant

Additional Feature :

PRECISION

Series :

LR, Neohm

Product Diameter (mm) :

1.7(mm)

Surface Mount :

No

Tolerance :

1%

Height - Seated (Max) :

--

Tolerance (+ or -) :

1%

Number of Terminals :

2

Pbfree Code :

yes

Packaging :

Ammo

Operating Temperature :

-55°C ~ 155°C

Termination Style :

Axial

Maximum Operating Temperature :

+ 155 C
