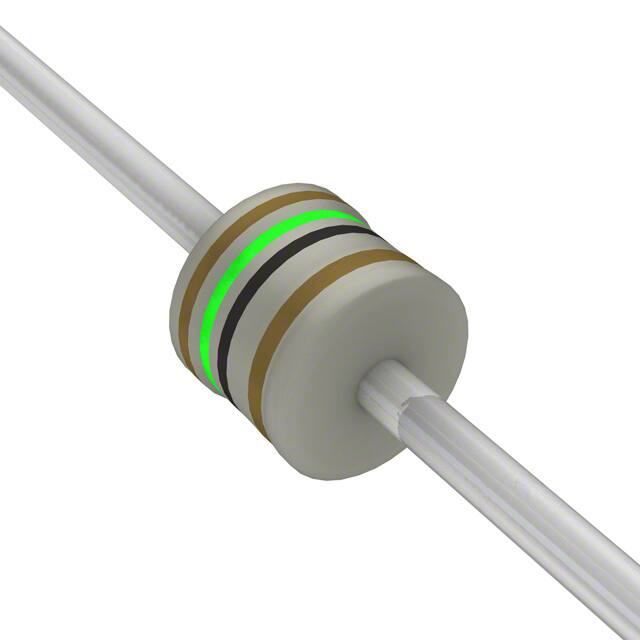

LR0204F15R

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Max Operating Temperature :

155 °C

Subcategory :

Resistors

Gender :

PLUG

Mount :

Axial, Through Hole

Terminal Shape :

Wire

Height - Seated (Max) :

--

Pbfree Code :

yes

Package Length :

3.5 mm

Resistance :

15 Ω

Mounting Feature :

THROUGH HOLE MOUNT

Voltage Rating (DC) :

200 V

Factory Lead Time :

15 Weeks, 6 Days

Product Width :

-

Mounting :

Cable Mount

Package Shape :

TUBULAR PACKAGE

Resistance Tolerance :

± 1%

ELV :

Compliant

Manufacturer :

TE Connectivity

Series :

LR, Neohm

Package :

Tape and Box (TB)

ECCN Code :

EAR99

Contact Material :

Phosphor Bronze

Mounting Style :

PCB Mount

Lifecycle Status :

Production (Last Updated: 2 weeks ago)

Maximum Operating Temperature :

+ 155 C

Qualification :

-

Composition :

Metal Film, Thin Film

Max Power Dissipation :

250 mW

Type :

SCSI

Packing Method :

Ammo Pack

Tolerance :

1 %

Resistor Type :

GENERAL PURPOSE

Length :

3.5 mm

Base/Housing Material :

Polyester

Termination Style :

Axial

Lead Diameter :

0.45 mm

Failure Rate :

--

Product Category :

Metal Film Resistors - Through Hole

Working Voltage :

200 V

Number of Terminations :

2

Temperature Coefficient :

100 ppm/°C

Rated Temperature :

70 °C

REACH SVHC :

No SVHC

JESD-609 Code :

e3

Product Length :

51.54 mm

Additional Feature :

PRECISION

Min Operating Temperature :

-55 °C

Diameter :

1.7 mm

Product Status :

Active

Power (Watts) :

0.25W, 1/4W

Features :

--

Number of Resistors :

1

Packaging :

Tape and Box (TB)

Operating Temperature :

-55 to 105 °C

Supplier Device Package :

Axial

Termination Method :

IDT

Minimum Operating Temperature :

- 55 C

Technology :

Metal Film

Pitch :

1.2700 mm

Rated Power Dissipation (P) :

0.25 W

Brand :

TE Connectivity / Holsworthy

Terminal Finish :

Tin (Sn)

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 weeks ago)

Body Orientation :

RIGHT ANGLE

Power Rating :

250 mW

Number of Terminals :

2

Package / Case :

Axial

Number of Ports :

1

Voltage Rating :

200 V

Base Product Number :

LR0204

Contact Plating :

Gold

Radiation Hardening :

No

Surface Mount :

No

Reach Compliance Code :

Compliant

Size / Dimension :

0.079 Dia x 0.138 L (2.00mm x 3.50mm)

RoHS :

Compliant

Construction :

Tubular

Product Type :

Metal Film Resistors

Termination :

Axial
