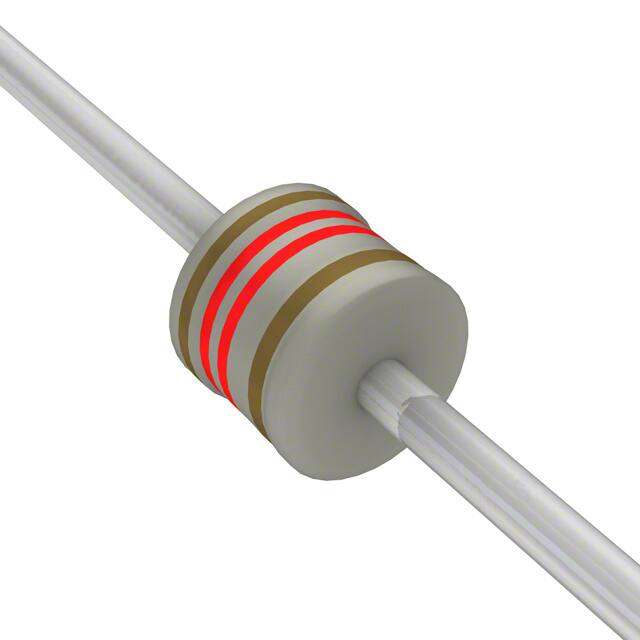

LR0204F1K2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Product Length :

3.5mm

Resistance Tolerance :

± 1%

Features :

--

Rated Power Dissipation (P) :

0.25 W

Resistance :

1.2 kOhms

Manufacturer :

TE Connectivity

ECCN Code :

EAR99

Working Voltage :

200 V

Type :

FIXED RESISTOR

Rated Temperature :

70 °C

Product Width :

-

Base Product Number :

LR0204

Size / Dimension :

0.079 Dia x 0.138 L (2.00mm x 3.50mm)

Packing Method :

Ammo Pack

Number of Terminals :

2

Construction :

Tubular

Lead Diameter :

0.45 mm

Terminal Finish :

Tin (Sn)

Package / Case :

Axial

JESD-609 Code :

e3

Power (Watts) :

0.25W, 1/4W

Failure Rate :

--

Resistor Type :

GENERAL PURPOSE

Tolerance :

±1%

Product :

Metal Film Resistors General Purpose

Product Type :

Metal Film Resistors

Package Shape :

TUBULAR PACKAGE

Power Rating :

250mW

Package :

Tape and Box (TB)

Brand :

TE Connectivity / AMP

Operating Temperature :

-55°C ~ 155°C

Qualification :

-

Package Length :

3.5 mm

Composition :

Metal Film

Technology :

Metal Film

Mounting Style :

PCB Mount

Maximum Operating Temperature :

+ 155 C

Supplier Device Package :

Axial

Height - Seated (Max) :

--

Series :

LR, Neohm

Subcategory :

Resistors

Product Category :

Metal Film Resistors - Through Hole

Mounting Feature :

THROUGH HOLE MOUNT

Voltage Rating :

200V

Reach Compliance Code :

Compliant

Temperature Coefficient :

±100ppm/°C

Packaging :

Tape and Box (TB)

Factory Lead Time :

15 Weeks, 6 Days

Terminal Shape :

Wire

Minimum Operating Temperature :

- 55 C

RoHS :

Details

Pbfree Code :

yes

Number of Terminations :

2

Additional Feature :

PRECISION

Product Status :

Active

Length :

3.5 mm

Termination Style :

Axial

Surface Mount :

No

Diameter :

2 mm
