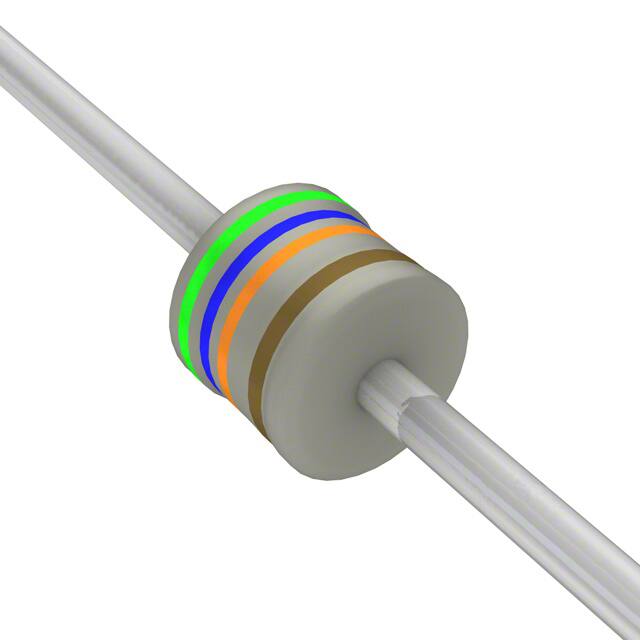

LR0204F56K

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Rated Power Dissipation (P) :

0.25 W

Number of Terminals :

2

Power Rating :

0.25 W

Product Length :

3.2

Product Type :

Metal Film Resistors

Resistance Tolerance :

1

Packaging :

Tape and Box (TB)

Flame-Proof Support :

No

Construction :

Tubular

Operating Temp Range :

-55C to 155C

Lead Diameter :

0.45 mm

Mounting Style :

PCB Mount

Size / Dimension :

0.079 Dia x 0.138 L (2.00mm x 3.50mm)

Lead Spacing (nom) :

Not Required(mm)

Reach Compliance Code :

Compliant

Terminal Finish :

Tin (Sn)

Failure Rate :

--

Resistor Type :

FIXED RESISTOR

Package / Case :

Axial

Resistance :

56000 Ω

Product Diameter (mm) :

2(mm)

Product Length (mm) :

3.5(mm)

Power (Watts) :

0.25W, 1/4W

Height - Seated (Max) :

--

Tolerance :

1%

Temperature Range @ Derated Power :

70 to 125

JESD-609 Code :

e3

Minimum Operating Temperature :

- 55 C

Package Shape :

TUBULAR PACKAGE

Package :

Tape and Box (TB)

Package Length :

3.5 mm

Supplier Device Package :

Axial

Surface Mount :

No

Packing Method :

Ammo Pack

Brand :

TE Connectivity / Holsworthy

Composition :

Metal Film

Features :

--

Product Depth (mm) :

Not Required(mm)

Terminal Shape :

Wire

Number of Terminations :

2

Case Style :

Conformal Coated

Series :

LR, Neohm

Product Height (mm) :

Not Required(mm)

Maximum Operating Temperature :

+ 155 C

Product Status :

Active

Pbfree Code :

yes

Base Product Number :

LR0204

ECCN Code :

EAR99

Factory Lead Time :

15 Weeks, 6 Days

Military Standard :

Not Required

Operating Temperature :

-55°C ~ 155°C

Working Voltage :

200 V

Mounting Feature :

THROUGH HOLE MOUNT

Termination Style :

Axial

Additional Feature :

PRECISION

Type :

Thin Film

Diameter :

2 mm

Power Rating(s) :

0.25 (1/4)(W)

Rated Temperature :

70 °C

Length :

3.5 mm

Temperature Coefficient :

100 ppm/°C

Tolerance (+ or -) :

1%

Product Category :

Metal Film Resistors - Through Hole
