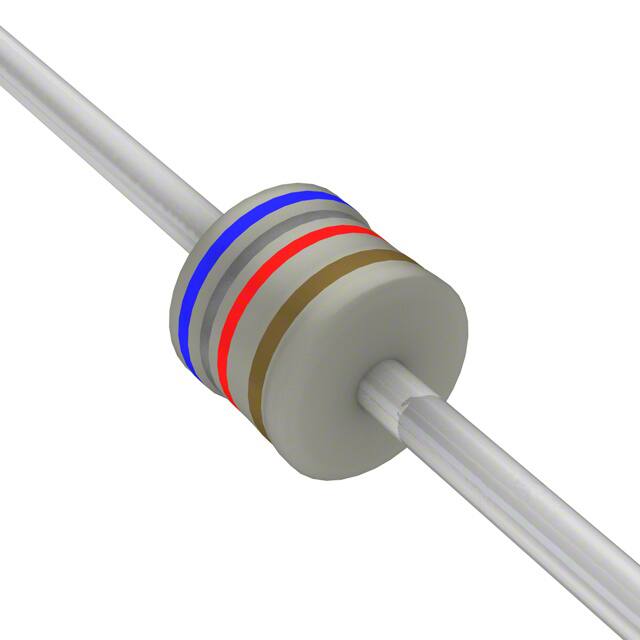

LR0204F6K8

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Brand :

TE Connectivity / Holsworthy

Product Length :

3.2

Additional Feature :

PRECISION

Voltage Rating :

200V

Product Type :

Metal Film Resistors

Features :

--

Temperature Coefficient :

100 ppm/°C

Composition :

Metal Film

Minimum Operating Temperature :

- 55 C

Package Length :

3.5 mm

Failure Rate :

--

Base Product Number :

LR0204

Supplier Device Package :

Axial

Power Rating :

0.25 W

Termination Style :

Axial

Series :

LR, Neohm

Product Width :

-

Qualification :

-

Packing Method :

Ammo Pack

Rated Power Dissipation (P) :

0.25 W

Product Status :

Active

Length :

3.5 mm

JESD-609 Code :

e3

Construction :

Tubular

Rated Temperature :

70 °C

Diameter :

2 mm

Package / Case :

Axial

Terminal Shape :

Wire

Operating Temperature :

-55°C ~ 155°C

Surface Mount :

No

Factory Lead Time :

15 Weeks, 6 Days

Reach Compliance Code :

Compliant

Package :

Tape and Box (TB)

Height - Seated (Max) :

--

Mounting Style :

PCB Mount

Tolerance :

1%

ECCN Code :

EAR99

Resistance Tolerance :

1

Size / Dimension :

0.079 Dia x 0.138 L (2.00mm x 3.50mm)

Number of Terminals :

2

Resistance :

6800 Ω

Mounting Feature :

THROUGH HOLE MOUNT

Power (Watts) :

0.25W, 1/4W

Pbfree Code :

yes

Number of Terminations :

2

Packaging :

Tape and Box (TB)

Lead Diameter :

0.45 mm

Product Category :

Metal Film Resistors - Through Hole

Maximum Operating Temperature :

+ 155 C

Working Voltage :

200 V

Resistor Type :

FIXED RESISTOR

Package Shape :

TUBULAR PACKAGE

Terminal Finish :

Tin (Sn)
