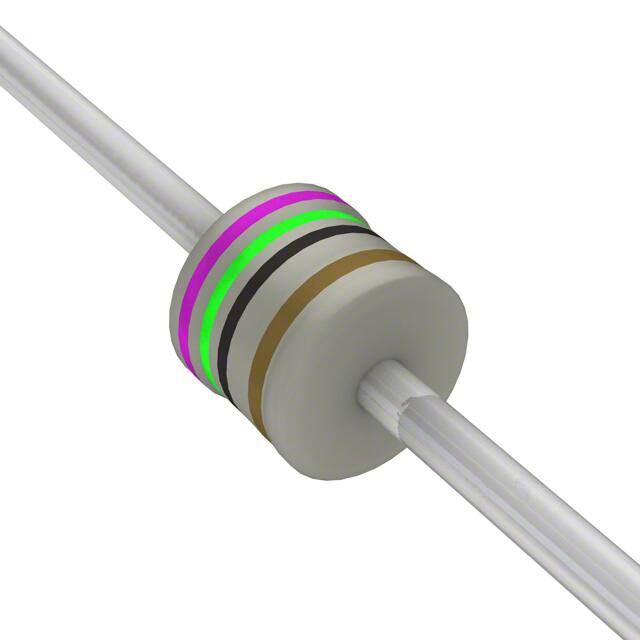

LR0204F75R

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Maximum Operating Temperature :

+ 155 C

JESD-609 Code :

e3

Product Depth (mm) :

Not Required(mm)

Working Voltage :

200 V

Pbfree Code :

yes

Additional Feature :

PRECISION

Power Rating(s) :

0.25 (1/4)(W)

Termination Style :

Axial

Construction :

Tubular

Number of Terminals :

2

Minimum Operating Temperature :

- 55 C

Package :

Tape and Box (TB)

Resistance Tolerance :

± 1%

Length :

3.5 mm

Composition :

Metal Film

Flame-Proof Support :

No

Operating Temperature :

-55°C ~ 155°C

Number of Terminations :

2

Voltage Rating (DC) :

200 V

Brand :

TE Connectivity / Holsworthy

Features :

--

Supplier Device Package :

Axial

Product Length :

3.5mm

Failure Rate :

--

Terminal Finish :

Tin (Sn)

Product Length (mm) :

3.5(mm)

Product Category :

Metal Film Resistors - Through Hole

Mount :

Axial, Through Hole

Qualification :

-

Rated Temperature :

70 °C

Power Rating :

250 mW

Product Width :

-

Radiation Hardening :

No

Power (Watts) :

0.25W, 1/4W

Min Operating Temperature :

-55 °C

Series :

LR, Neohm

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 weeks ago)

Number of Resistors :

1

Lead Spacing (nom) :

Not Required(mm)

Mounting Feature :

THROUGH HOLE MOUNT

Product Type :

Metal Film Resistors

Max Power Dissipation :

250 mW

Mounting Style :

PCB Mount

Diameter :

1.7 mm

Max Operating Temperature :

155 °C

Operating Temp Range :

-55C to 155C

Height - Seated (Max) :

--

Package / Case :

Axial

Tolerance (+ or -) :

1%

Surface Mount :

No

Packaging :

Tape and Box (TB)

ECCN Code :

EAR99

Packing Method :

Ammo Pack

Resistance :

75 Ω

Voltage Rating :

200 V

Product Diameter (mm) :

2(mm)

Package Length :

3.5 mm

Termination :

Axial

Lead Diameter :

0.45 mm

Lifecycle Status :

Production (Last Updated: 2 weeks ago)

RoHS :

Compliant

Product Status :

Active

Package Shape :

TUBULAR PACKAGE

REACH SVHC :

Unknown

Military Standard :

Not Required

Resistor Type :

FIXED RESISTOR

ELV :

Compliant

Terminal Shape :

Wire

Type :

Thin Film

Size / Dimension :

0.079 Dia x 0.138 L (2.00mm x 3.50mm)

Base Product Number :

LR0204

Reach Compliance Code :

Compliant

Case Style :

Conformal Coated

Tolerance :

1%

Temperature Coefficient :

100 ppm/°C

Rated Power Dissipation (P) :

0.25 W

Product Height (mm) :

Not Required(mm)
