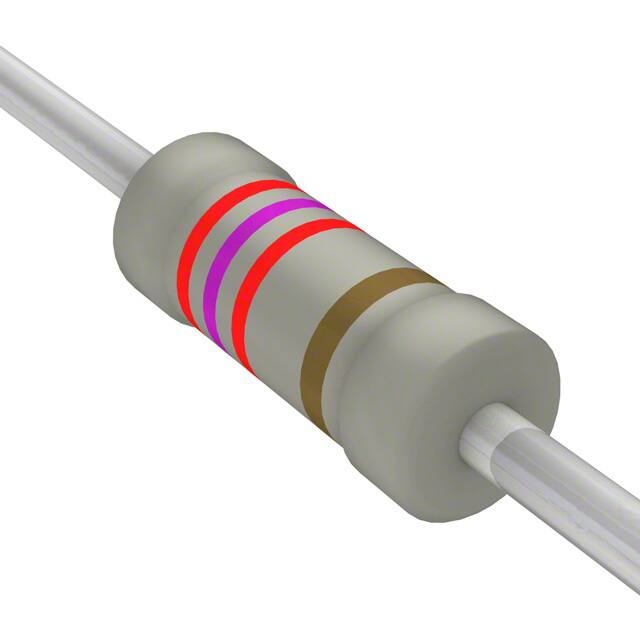

LR1F2K7

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Construction :

Cylindrical

Operating Temperature :

-55°C ~ 155°C

Temperature Coefficient :

±50(ppm/°C)

Maximum Operating Temperature :

+155°C

Case Style :

Epoxy Resin

Length :

6.2 mm

Factory Lead Time :

15 Weeks, 6 Days

Product Diameter (mm) :

2.3(mm)

Minimum Operating Temperature :

-55°C

Qualification :

-

Product Type :

Metal Film Resistors

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Gender :

Male

Product Length :

6.2mm

Product :

Metal Film Resistors General Purpose

Power Rating :

0.6W

Terminal Shape :

Wire

Product Category :

Metal Film Resistors - Through Hole

Contact Plating :

Gold

Lead Diameter :

0.55 mm

Reach Compliance Code :

Compliant

Product Height (mm) :

Not Required(mm)

Mounting Feature :

THROUGH HOLE MOUNT

Operating Temp Range :

-55C to 155C

Tolerance (+ or -) :

1%

Resistance Tolerance :

± 1%

Type :

Thin Film

Product Length (mm) :

6.2(mm)

Termination Style :

Axial

Package :

Tape and Box (TB)

Series :

LR, Neohm

Pitch :

2.54 mm

Rated Power Dissipation (P) :

0.6 W

Manufacturer :

TE Connectivity

Lead Spacing (nom) :

Not Required(mm)

Terminal Finish :

Tin (Sn)

Resistor Type :

GENERAL PURPOSE

Package Shape :

TUBULAR PACKAGE

Surface Mount :

No

Mount :

Through Hole

Brand :

TE Connectivity / Holsworthy

Product Status :

Active

Composition :

Metal Film

Power (Watts) :

0.6W

Subcategory :

Resistors

Number of Terminals :

2

Technology :

Metal Film

Product Width :

-

Diameter :

2.3 mm

Tolerance :

±1%

Voltage Rating :

350V

Rated Temperature :

70 °C

Additional Feature :

PRECISION

Temperature Range @ Derated Power :

70 to 125

Package / Case :

Axial

Number of Terminations :

2

Military Standard :

Not Required

Termination :

Solder

Number of Contacts :

30

Power Rating(s) :

0.6(W)

Mounting Style :

PCB Mount

JESD-609 Code :

e3

Flame-Proof Support :

No

Packaging :

Ammo

Resistance :

2700(ohm)

Pbfree Code :

yes

Height - Seated (Max) :

--

Failure Rate :

Not Required

RoHS :

Compliant

Supplier Device Package :

Axial

Package Length :

6.2 mm

Features :

--

Number of Rows :

2

Working Voltage :

350 V

ECCN Code :

EAR99

Product Depth (mm) :

Not Required(mm)

Packing Method :

Ammo Pack
