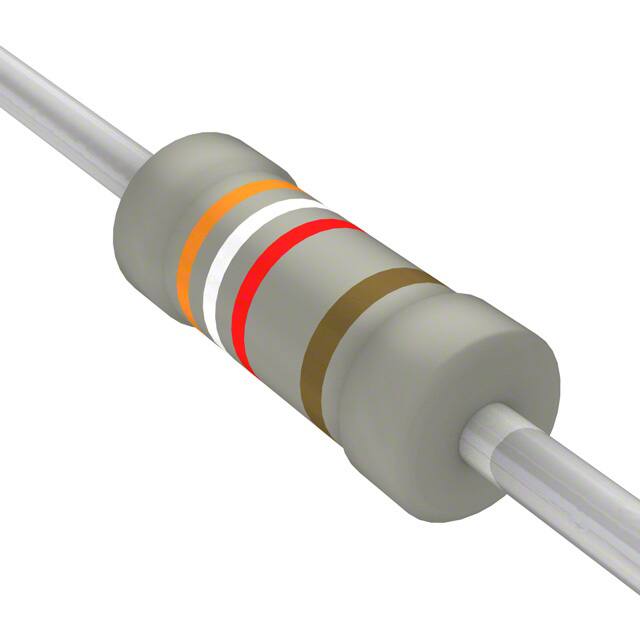

LR1F3K9

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Lead Diameter :

0.55 mm

Pbfree Code :

yes

Minimum Operating Temperature :

-55°C

Features :

--

Qualification :

-

Size / Dimension :

0.079 L x 0.039 W (2.00mm x 1.00mm)

Product Width :

-

Composition :

Metal Film

Resistor Matching Ratio :

--

Applications :

Automotive AEC-Q200

Rated Power Dissipation (P) :

0.6 W

Product Status :

Active

Package :

Tape and Box (TB)

Supplier Device Package :

--

Resistor Type :

GENERAL PURPOSE

Number of Pins :

8

Resistance Tolerance :

1

Packaging :

Tape and Reel (TR)

Termination Style :

Axial

Circuit Type :

Isolated

Base Product Number :

LR1F

Operating Temperature :

-55°C ~ 155°C

Number of Resistors :

4

Failure Rate :

--

Factory Lead Time :

15 Weeks, 6 Days

ECCN Code :

EAR99

Terminal Shape :

Wire

Number of Terminals :

2

Resistor-Ratio-Drift :

--

Mounting Type :

Surface Mount

Reach Compliance Code :

Compliant

Height - Seated (Max) :

0.020 (0.50mm)

RoHS :

Details

Product Type :

Metal Film Resistors

Manufacturer :

TE Connectivity

Rated Temperature :

70 °C

Mounting Feature :

THROUGH HOLE MOUNT

Packing Method :

Ammo Pack

Product :

Metal Film Resistors General Purpose

Terminal Finish :

Tin (Sn)

Maximum Operating Temperature :

+155°C

Temperature Coefficient :

±200ppm/°C

JESD-609 Code :

e3

Brand :

TE Connectivity / Holsworthy

Resistance (Ohms) :

12

Power Per Element :

62.5mW

Product Category :

Metal Film Resistors - Through Hole

Construction :

Tubular

Technology :

Metal Film

Resistance :

3.9 kOhm

Series :

RAVF

Power (Watts) :

0.6W

Subcategory :

Resistors

Diameter :

2.3 mm

Type :

FIXED RESISTOR

Package Length :

6.2 mm

Tolerance :

±5%

Voltage Rating :

350V

Power Rating :

0.6 W

Package / Case :

0804, Convex, Long Side Terminals

Package Shape :

TUBULAR PACKAGE

Mounting Style :

PCB Mount

Surface Mount :

No

Length :

6.2 mm

Number of Terminations :

2

Product Length :

6.2

Additional Feature :

PRECISION

Working Voltage :

350 V
