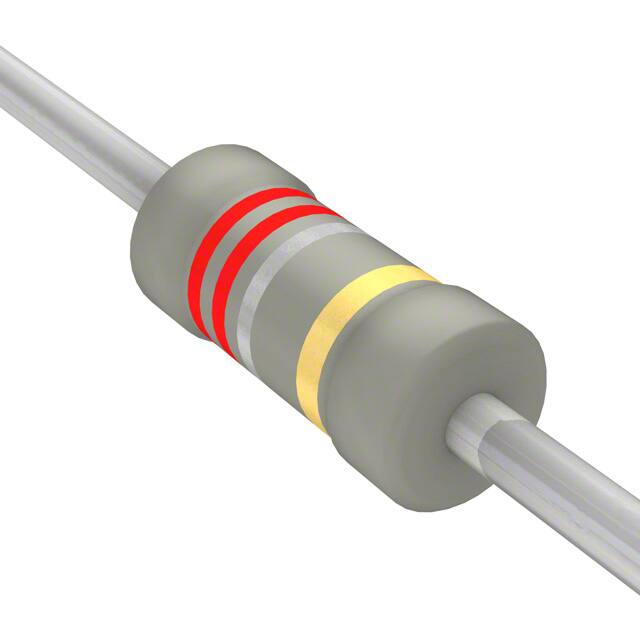

LR1LJR22

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Failure Rate :

Not Required

Product Length (mm) :

6.2(mm)

Resistance Tolerance :

5

Tolerance :

5%

Product Height (mm) :

Not Required(mm)

Pbfree Code :

yes

Mounting Feature :

THROUGH HOLE MOUNT

Additional Feature :

PRECISION

Product Category :

Metal Film Resistors - Through Hole

Rated Temperature :

70 °C

Case Style :

Epoxy Resin

Diameter :

2.3 mm

Type :

Metal Film

Lead Diameter :

0.55 mm

Product Status :

Active

Series :

LR1L

Rated Power Dissipation (P) :

0.5 W

Military Standard :

Not Required

Surface Mount :

No

Height - Seated (Max) :

-

Package Length :

6.2 mm

Product Length :

6.2

Resistance :

0.22 Ω

Packaging :

Ammo

Working Voltage :

350 V

Brand :

TE Connectivity / Holsworthy

Length :

6.2 mm

Base Product Number :

LR1L

Operating Temperature :

-55°C ~ 155°C

Product Type :

Metal Film Resistors

Operating Temp Range :

-55C to 155C

Package Shape :

TUBULAR PACKAGE

Voltage Rating :

350V

Product Depth (mm) :

Not Required(mm)

Tolerance (+ or -) :

5%

Number of Terminations :

2

Product :

Metal Film Resistors General Purpose

Factory Lead Time :

15 Weeks, 6 Days

Temperature Range @ Derated Power :

70 to 125

Termination Style :

Axial

Features :

-

Power Rating(s) :

0.5 (1/2)(W)

Composition :

Metal Film

Resistor Type :

FIXED RESISTOR

Number of Terminals :

2

Packing Method :

Ammo Pack

ECCN Code :

EAR99

Temperature Coefficient :

200 ppm/°C

Package / Case :

Axial

Power (Watts) :

0.5W, 1/2W

Terminal Shape :

Wire

Flame-Proof Support :

No

Construction :

Tubular

Product Diameter (mm) :

2.3(mm)

Maximum Operating Temperature :

+155°C

Product Width :

-

JESD-609 Code :

e3

Reach Compliance Code :

Compliant

Lead Spacing (nom) :

Not Required(mm)

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Mounting Style :

PCB Mount

RoHS :

Details

Minimum Operating Temperature :

-55°C

Qualification :

-

Terminal Finish :

Tin (Sn)

Package :

Cut Tape (CT);Tape and Box (TB);

Supplier Device Package :

Axial

Power Rating :

0.5 W
